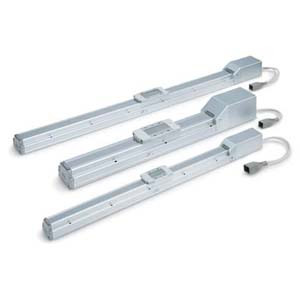

SMC LEFS25RAA-200B-R3 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

The SMC LEFS25RAA-200B-R3 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor (servo 24 VDC) or a servo motor (24 VDC), making it versatile for various applications. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring accurate and reliable operation. Engineered to meet clean specifications, it complies with ISO Class 4 (ISO14644-1) standards, making it suitable for environments requiring stringent cleanliness. The actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For applications requiring higher output, the LEFS Series also offers an AC servo motor option with power ratings of 100/200/400 W. This variant enhances high-speed transfer capabilities and supports high acceleration/deceleration up to 20000mm/S². It features a pulse input type and includes an internal absolute encoder for the LECSB/C/S models, providing high precision with positioning repeatability of ±0.01 mm. The actuator is compatible with various drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models being discontinued. Whether for industrial automation or precision engineering, the SMC LEFS25RAA-200B-R3 offers robust performance and adaptability to meet your specific needs.
