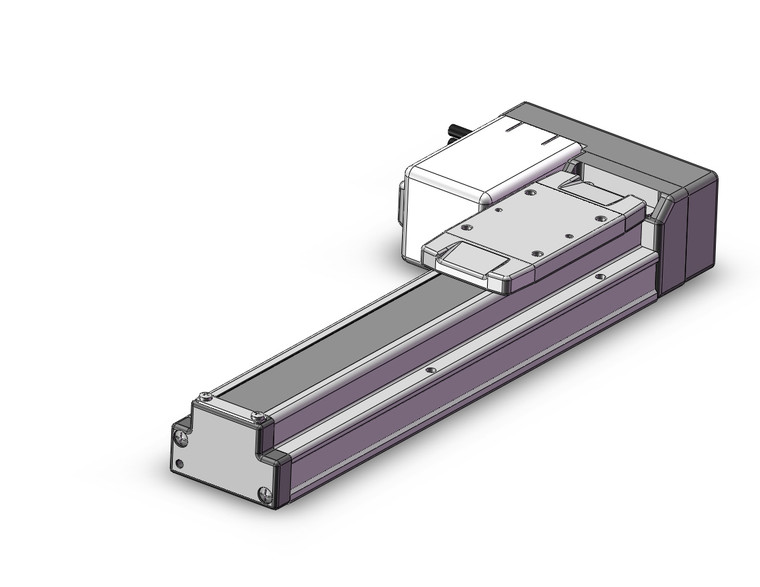

SMC LEFS25RAB-150-R16N1D LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

The SMC LEFS25RAB-150-R16N1D is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor with a servo function, operating at 24 VDC. It is capable of handling a maximum workload of 65 kg, making it suitable for a variety of industrial applications. With a positioning repeatability of ±0.02 mm, this actuator ensures precise and reliable operation. It meets clean specifications, complying with ISO Class 4 (ISO14644-1) standards, specifically for the 11-LEFS model. The actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEFS Series also offers an AC Servo Motor option, providing high output with 100/200/400 W power capabilities. It boasts improved high-speed transfer ability and high acceleration/deceleration rates of up to 20000mm/S². The pulse input type actuator includes an internal absolute encoder for enhanced precision, achieving a positioning repeatability of ±0.01 mm in high precision models. Compatible drivers for the LEFS Series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and some discontinued models like LECSB-S, LECSC-S, and LECSS-S. This versatile actuator is ideal for applications requiring high precision, speed, and reliability.
