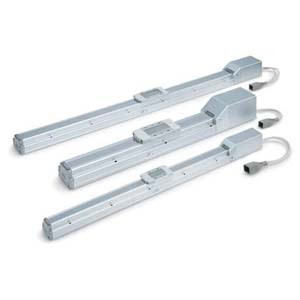

SMC LEFS25RAB-600B-R56N5D Ball Screw Drive Actuator

SMC LEFS25RAB-600B-R56N5D LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFS25RAB-600B-R56N5D
Availability:
Factory Stock
$1,875.00
Condition:
New
Current Stock:
Description
The SMC LEFS25RAB-600B-R56N5D is a versatile electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor (Servo 24 VDC) or a servo motor (24 VDC), making it suitable for a wide range of applications. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable performance in demanding environments. The actuator complies with ISO Class 4 clean specifications (ISO14644-1) for the 11-LEFS model, making it ideal for cleanroom applications. Compatible with a variety of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, this actuator offers flexibility in integration. The LEFS Series also includes an AC Servo Motor option, providing high output power (100/200/400 W) and enhanced high-speed transfer capabilities. With high acceleration and deceleration rates of up to 20000mm/S², it is designed for rapid and precise movements. The actuator is equipped with an internal absolute encoder for the LECSB/C/S models, ensuring high precision with positioning repeatability of ±0.01 mm. It is compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, although some models have been discontinued. Whether for industrial automation or cleanroom applications, the SMC LEFS25RAB-600B-R56N5D offers a robust solution for your motion control needs.
Additional Information
Accuracy:
Basic
Size:
25
Motor Mounting Position:
Right Side Parallel
Motor Type:
Servo motor (24 VDC)
Lead:
Size16: 5 mm, Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
Stroke:
Stroke 600 mm
Motor Option:
With Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Robotic Cable (Flexible Cable)
Actuator Cable Length:
5 m
Controller Type:
LECA6 Step Fata Input Type NPN (LECP6 Manufacture discontinued)
I/O Cable Length, Communication Plug:
5 m
Controller Mounting:
DIN Rail Mounting
