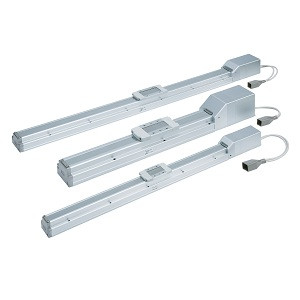

SMC LEFS25RH-500-R3C917 Ball Screw Drive Slider Actuator

SMC LEFS25RH-500-R3C917 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC
SKU:
LEFS25RH-500-R3C917
Availability:
Factory stock
$1,630.00
Condition:
New
Current Stock:
Description

LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series

Series LEFS Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Max. work load: 65 kg;
  • Positioning repeatability: ±0.02 mm;
  • Clean specification: Complies with ISO Class 4 (ISO14644-1) (11-LEFS only);
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued);;Series LEFS AC Servo Motor;
  • High output motor (100/200/400 W);
  • Improved high speed transfer ability;
  • High acceleration/deceleration?20000mm/S2?;
  • Pulse input type;
  • With internal absolute encoder (For the LECSB/C/S);
  • Positioning repeatability: ±0.01 mm (High precision type);
  • Clean specification: Complies with ISO Class 4 (ISO14644-1) (11-LEFS only);
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
