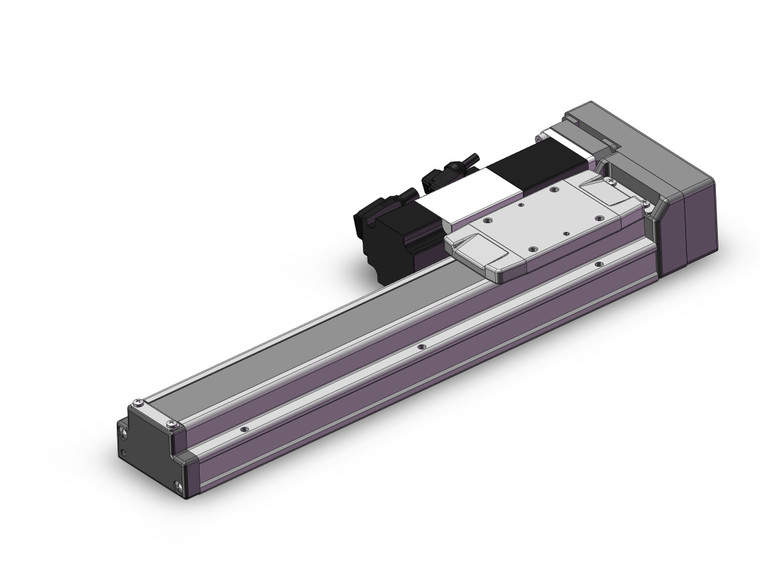

SMC LEFS25RS2A-200B-RAA1H LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor
SMC
$3,040.00
The SMC LEFS25RS2A-200B-RAA1H is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive powered by an AC servo motor, ensuring smooth and reliable operation. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it is ideal for applications requiring high accuracy and load handling.
The actuator is equipped with a high output motor available in 100/200/400 W options, enhancing its high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000 mm/s², making it suitable for dynamic and demanding environments. The inclusion of an internal absolute encoder ensures precise positioning, with a high precision type offering repeatability of ±0.01 mm.
Compliant with ISO Class 4 (ISO14644-1) clean specifications, the LEFS25RS2A-200B-RAA1H is suitable for cleanroom applications, particularly the 11-LEFS model. It is compatible with a range of controllers and drivers, including JXC51, JXC61, JXCE1, and more, providing flexibility and ease of integration into existing systems.
Whether for industrial automation, robotics, or other precision-driven applications, the SMC LEFS25RS2A-200B-RAA1H electric actuator delivers exceptional performance and reliability.
- Accuracy:
- Basic
- Size:
- 25
- Motor Mounting Position:
- Right Side Parallel
- Motor Type:
- AC Servo Motor(Incremental Encoder), Output 100W, Actuator Size 25 mm
- Lead:
- Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
- Stroke:
- Stroke 200 mm
- Motor Option:
- With Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Cable Type:
- Robotic Cable(Flexible Cable)
- Cable Length:
- 10 m
- Driver Type:
- LECSA1, Power Supply Voltage 100V To 120V
- I/O Cable Length:
- With Connector
