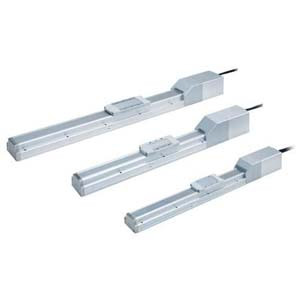

SMC LEFS25S6A-600B-RAS2H LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor
SMC
$3,568.00
The SMC LEFS25S6A-600B-RAS2H is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive powered by an AC servo motor, ensuring smooth and reliable operation. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it is ideal for applications requiring high accuracy and load handling.
The actuator is equipped with a high output motor available in 100/200/400 W options, offering improved high-speed transfer capabilities and exceptional acceleration/deceleration rates of up to 20000 mm/s². It includes an internal absolute encoder for enhanced precision, making it suitable for high precision tasks with a positioning repeatability of ±0.01 mm.
Compliant with ISO Class 4 (ISO14644-1) clean specifications, the LEFS25S6A-600B-RAS2H is perfect for environments where cleanliness is crucial. It is compatible with a range of controllers and drivers, including JXC51, JXC61, JXCE1, and more, providing flexibility and ease of integration into existing systems.
Whether for industrial automation, robotics, or other demanding applications, the SMC LEFS25S6A-600B-RAS2H offers the reliability and performance needed to meet your operational needs.
- Accuracy:
- Basic
- Size:
- 25
- Motor Mounting Position:
- In-line
- Motor Type:
- AC Servo Motor(Absolute Encoder), Output 100W, Actuator Size 25 mm
- Lead:
- Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
- Stroke:
- Stroke 600 mm
- Motor Option:
- With Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Cable Type:
- Robotic Cable(Flexible Cable)
- Cable Length:
- 10 m
- Driver Type:
- LECSS2-T, Power Supply Voltage 200V To 240V
- I/O Cable Length:
- With Connector
