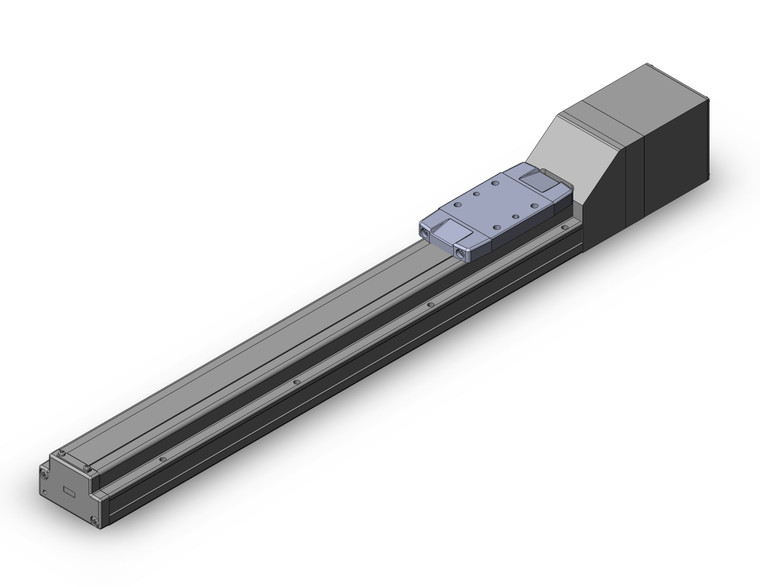

SMC LEFS32A-400-R3C918 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,705.00
The SMC LEFS32A-400-R3C918 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type ball screw drive step motor operates on a 24 VDC servo, making it ideal for applications requiring accurate positioning and smooth motion control. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable performance in demanding environments.
This actuator is compatible with a range of controllers, including the JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. It features a high output motor available in 100/200/400 W options, offering improved high-speed transfer capabilities and high acceleration/deceleration rates of up to 20000mm/S².
For applications requiring high precision, the actuator provides a positioning repeatability of ±0.01 mm. It also meets clean specifications, complying with ISO Class 4 (ISO14644-1) standards, making it suitable for cleanroom environments. Compatible drivers include the LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models.
Whether for industrial automation, robotics, or other precision-driven applications, the SMC LEFS32A-400-R3C918 offers a robust solution with its advanced features and reliable performance.
- Accuracy:
- Basic Style
- Size:
- 32
- Motor Mounting Position:
- In-line
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16:10mm,Size25:12mm,Size32:16mm,Size40:20mm
- Stroke:
- Stroke 400 mm
- Motor Option:
- Without Option
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type/Length:
- Robotic Cable 3 m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
