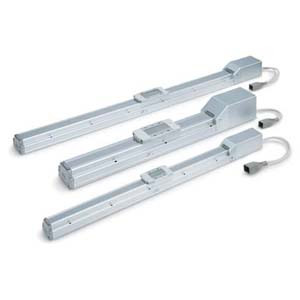

SMC LEFS32A-900-S5 Ball Screw Drive Actuator

SMC LEFS32A-900-S5 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFS32A-900-S5
Availability:
Factory Stock
$1,280.00
Condition:
New
Current Stock:
Description
The SMC LEFS32A-900-S5 is a versatile electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor with a servo function at 24 VDC. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring reliable performance in demanding applications. The actuator is compliant with ISO Class 4 clean specifications, making it suitable for environments requiring stringent cleanliness standards. The LEFS Series is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. Additionally, the series includes an AC servo motor option with high output capabilities of 100/200/400 W, enhancing high-speed transfer abilities and supporting high acceleration/deceleration rates of up to 20000mm/S². The pulse input type and internal absolute encoder (for the LECSB/C/S) further enhance its precision, with a high precision type offering positioning repeatability of ±0.01 mm. Compatible drivers for the LEFS Series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. This actuator is ideal for applications requiring high precision, speed, and cleanliness, making it a reliable choice for various industrial automation needs.
Additional Information
Accuracy:
Basic
Size:
32
Motor Mounting Position:
In-line
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
Stroke:
Stroke 900 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Standard Cable
Actuator Cable Length:
5 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
