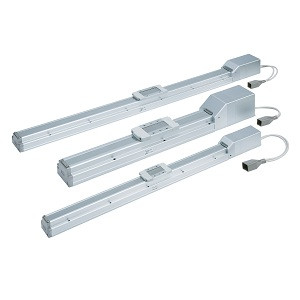

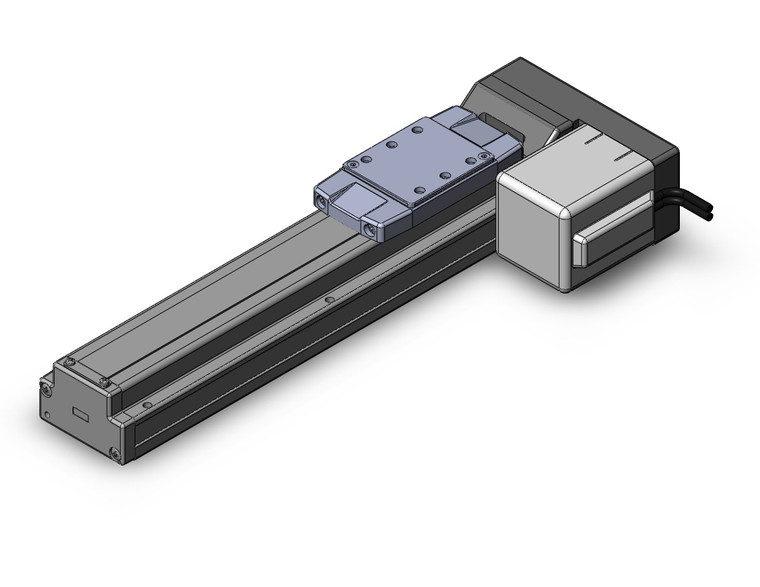

SMC LEFS32LB-200-RBC918 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series

The SMC LEFS32LB-200-RBC918 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and a step motor with a servo of 24 VDC, making it ideal for applications requiring accurate positioning and smooth motion control. It is compatible with the JXC Series controllers, ensuring seamless integration into your automation systems. Key features include a maximum workload capacity of 65 kg and exceptional positioning repeatability of ±0.02 mm, ensuring reliable and precise operations. The actuator complies with ISO Class 4 clean specifications, making it suitable for environments with stringent cleanliness requirements. The LEFS Series also offers a high output motor with options of 100, 200, or 400 W, enhancing its high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000 mm/s², making it perfect for dynamic applications. The actuator is equipped with an internal absolute encoder for the LECSB/C/S models, providing enhanced precision with a positioning repeatability of ±0.01 mm for high precision types. Compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, the LEFS32LB-200-RBC918 offers flexibility and adaptability for various industrial applications. Whether you need a reliable solution for high-speed transfers or precise positioning, this electric actuator delivers exceptional performance and durability.
