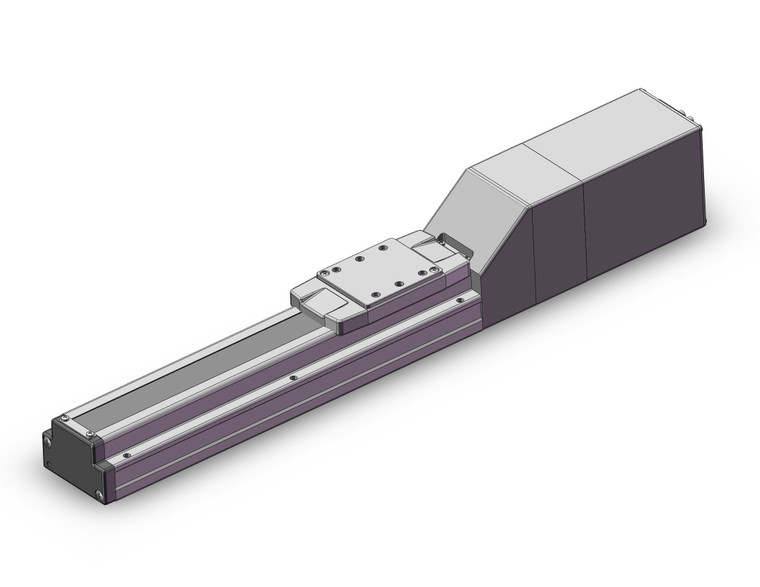

SMC LEFS32S3A-200-S2A1H Ball Screw Drive Actuator

SMC LEFS32S3A-200-S2A1H LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor

SMC
SKU:
LEFS32S3A-200-S2A1H
Availability:
Factory Stock
$2,190.00
Condition:
New
Current Stock:
Description
The SMC LEFS32S3A-200-S2A1H is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency in industrial applications. This slider type actuator features a ball screw drive powered by an AC servo motor, ensuring smooth and reliable operation. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it is ideal for tasks requiring high accuracy. The actuator complies with ISO Class 4 clean specifications, making it suitable for cleanroom environments. It is compatible with a range of controllers, including JXC51, JXC61, and others, providing flexibility in integration. The high output motor options (100/200/400 W) enhance its high-speed transfer capabilities, while the internal absolute encoder ensures precise positioning. This actuator is perfect for applications demanding high acceleration and deceleration, with a capability of up to 20000mm/S². Whether for new installations or upgrades, the LEFS32S3A-200-S2A1H offers a robust solution for advanced automation needs.
Additional Information
Accuracy:
Basic
Size:
32
Motor Mounting Position:
In-line
Motor Type:
AC servo motor(Incremental encoder), Output 200W, Actuator size 32 mm
Lead:
Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
Stroke:
Stroke 200 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Cable Type:
Standard Cable
Cable Length:
2 m
Driver Type:
LECSA1, Power Supply Voltage 100V To 120V
I/O Cable Length:
With Connector
