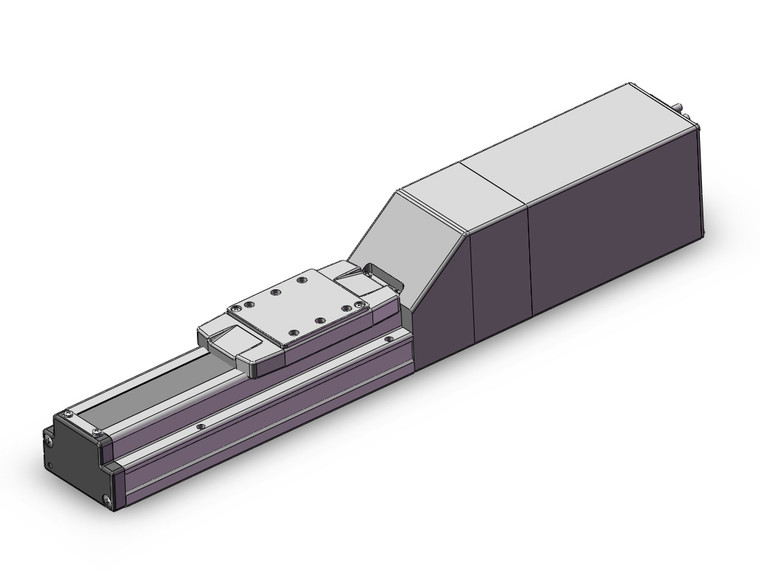

SMC LEFS32S7A-100B-R5 LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor
SMC
$2,430.00
The SMC LEFS32S7A-100B-R5 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type ball screw drive is powered by an AC servo motor, offering a robust solution for various industrial applications. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable and accurate operations. The actuator is compliant with ISO Class 4 clean specifications, making it suitable for environments requiring stringent cleanliness standards.
The LEFS Series features a high output motor available in 100/200/400 W options, enhancing high-speed transfer capabilities and supporting high acceleration/deceleration rates of up to 20000mm/S². It includes a pulse input type and an internal absolute encoder for the LECSB/C/S models, providing enhanced precision with a positioning repeatability of ±0.01 mm for high precision types.
Compatible with a range of controllers and drivers, including JXC51, JXC61, JXCE1, and more, the LEFS32S7A-100B-R5 offers flexibility and adaptability to meet diverse operational needs. Note that some compatible controllers and drivers have been discontinued, so please verify compatibility with current models. This actuator is an ideal choice for applications demanding high precision, speed, and cleanliness.
- Accuracy:
- Basic
- Size:
- 32
- Motor Mounting Position:
- In-line
- Motor Type:
- AC Servo Motor(Absolute Encoder), Output 200W, Actuator Size 32 mm
- Lead:
- Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
- Stroke:
- Stroke 100 mm
- Motor Option:
- With Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Cable Type:
- Robotic Cable(Flexible Cable)
- Cable Length:
- 5 m
- Driver Type:
- Without Driver
- I/O Cable Length:
- Without Cable
