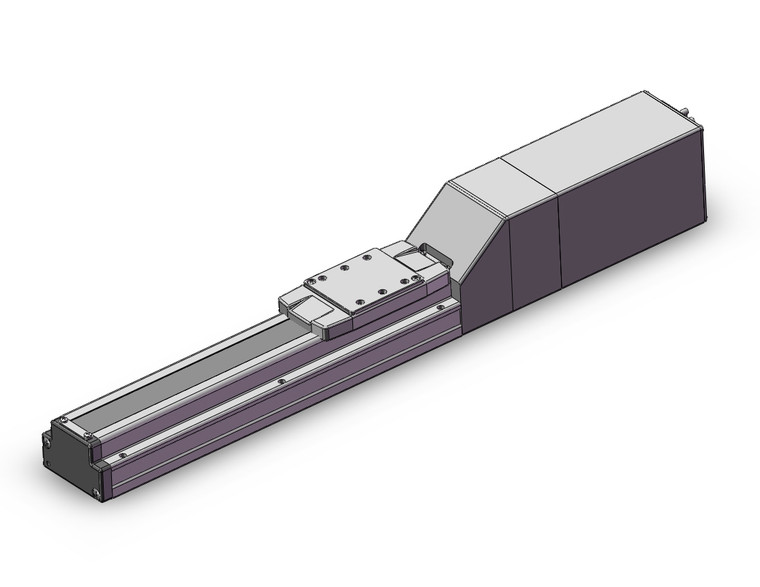

SMC LEFS32S7B-200B-S5C2H LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor
SMC
$3,365.00
The SMC LEFS32S7B-200B-S5C2H is a high-performance electric actuator designed for precision and efficiency. This slider type ball screw drive is powered by an AC servo motor, offering a robust solution for various industrial applications. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable and accurate operations. The actuator is compliant with ISO Class 4 clean specifications, making it suitable for environments requiring stringent cleanliness standards.
Equipped with a high output motor available in 100/200/400 W options, the LEFS series enhances high-speed transfer capabilities and supports high acceleration/deceleration up to 20000mm/S². It features a pulse input type and includes an internal absolute encoder for the LECSB/C/S models, providing enhanced precision with a positioning repeatability of ±0.01 mm for high precision types.
The actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. It also supports various drivers such as LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, with certain models no longer in production.
Ideal for applications demanding high precision and speed, the SMC LEFS32S7B-200B-S5C2H electric actuator is a versatile and reliable choice for modern automation needs.
- Accuracy:
- Basic
- Size:
- 32
- Motor Mounting Position:
- In-line
- Motor Type:
- AC Servo Motor(Absolute Encoder), Output 200W, Actuator Size 32 mm
- Lead:
- Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
- Stroke:
- Stroke 200 mm
- Motor Option:
- With Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Cable Type:
- Standard Cable
- Cable Length:
- 5 m
- Driver Type:
- LECSC2-T, Power Supply Voltage 200V To 230V
- I/O Cable Length:
- With Connector
