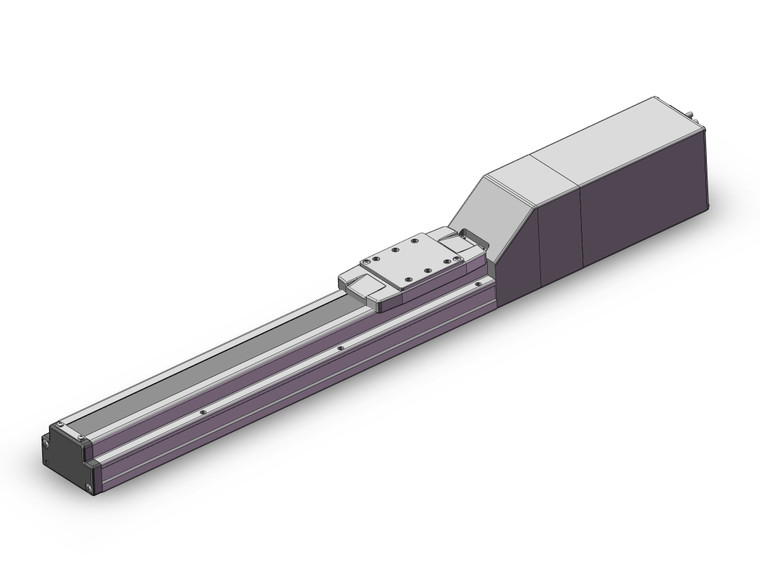

SMC LEFS32S7H-300B-R5C21 LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor
SMC
$3,870.00
The SMC LEFS32S7H-300B-R5C21 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive powered by an AC servo motor, ensuring smooth and reliable operation. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it is ideal for applications requiring high accuracy and load handling.
The actuator is equipped with a high output motor available in 100/200/400 W options, offering improved high-speed transfer capabilities and high acceleration/deceleration rates of up to 20000mm/S². It includes a pulse input type and an internal absolute encoder for enhanced precision, particularly in the high precision type with positioning repeatability of ±0.01 mm.
Compliant with ISO Class 4 (ISO14644-1) clean specifications, the LEFS32S7H-300B-R5C21 is suitable for cleanroom environments. It is compatible with a range of controllers and drivers, including JXC51, JXC61, JXCE1, and more, providing flexibility and ease of integration into various systems. Whether for industrial automation or specialized applications, this actuator delivers exceptional performance and reliability.
- Accuracy:
- Basic
- Size:
- 32
- Motor Mounting Position:
- In-line
- Motor Type:
- AC Servo Motor(Absolute Encoder), Output 200W, Actuator Size 32 mm
- Lead:
- Size25: 20 mm, Size32: 24 mm, Size40: 30 mm
- Stroke:
- Stroke 300 mm
- Motor Option:
- With Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Cable Type:
- Robotic Cable(Flexible Cable)
- Cable Length:
- 5 m
- Driver Type:
- LECSC2-T, Power Supply Voltage 200V To 230V
- I/O Cable Length:
- 1.5 m
