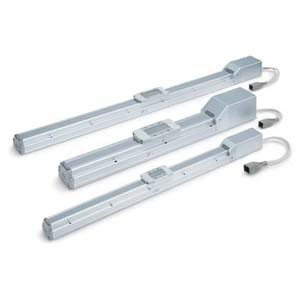

SMC LEFS40A-1000-S3 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

The SMC LEFS40A-1000-S3 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor (servo 24 VDC) or a servo motor (24 VDC), making it versatile for various applications. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring accurate and reliable operation. Engineered to meet clean specifications, the LEFS40A-1000-S3 complies with ISO Class 4 (ISO14644-1) standards, making it suitable for environments requiring stringent cleanliness. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEFS Series also includes an AC servo motor option, offering high output power of 100/200/400 W and enhanced high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000 mm/s², making it ideal for dynamic applications. The actuator is equipped with an internal absolute encoder for precise positioning, with a high precision type offering repeatability of ±0.01 mm. Compatible drivers for the LEFS Series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models being discontinued. This actuator is a reliable choice for industries requiring high precision, speed, and cleanliness in their automation processes.
