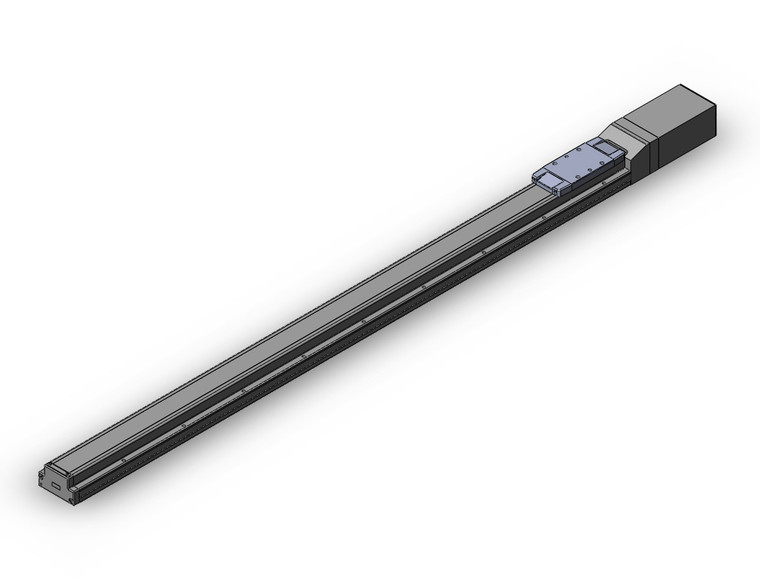

SMC LEFS40A-1200B-R5C918 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$2,625.00
The SMC LEFS40A-1200B-R5C918 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and a step motor with a 24 VDC servo, making it ideal for applications requiring accurate positioning and smooth operation. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable performance in demanding environments.
This actuator is compliant with ISO Class 4 clean specifications, making it suitable for cleanroom applications. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued.
The LEFS Series also offers an AC Servo Motor option with high output capabilities of 100/200/400 W, enhancing high-speed transfer abilities and supporting high acceleration/deceleration rates of up to 20000mm/S². The pulse input type and internal absolute encoder (for the LECSB/C/S) further enhance its precision, with a high precision type offering positioning repeatability of ±0.01 mm.
Compatible drivers for this actuator include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models. Whether for industrial automation or specialized applications, the SMC LEFS40A-1200B-R5C918 provides a robust solution for your motion control needs.
- Accuracy:
- Basic Style
- Size:
- 40
- Motor Mounting Position:
- In-line
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16:10mm,Size25:12mm,Size32:16mm,Size40:20mm
- Stroke:
- Stroke 1200 mm
- Motor Option:
- With Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type/Length:
- Robotic Cable 5 m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Controller Or Without Plug Connector
