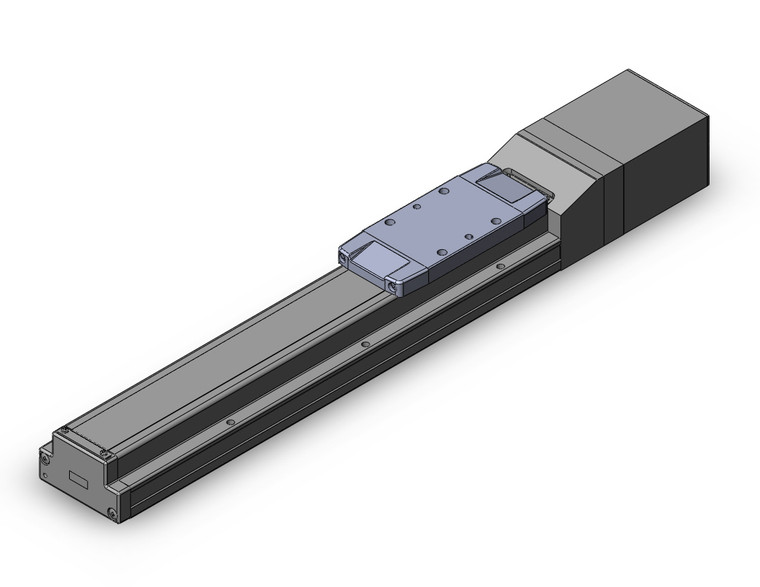

SMC LEFS40A-300-S5 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)
SMC
$1,370.00
The SMC LEFS40A-300-S5 is a versatile electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive step motor and a servo motor, both operating at 24 VDC. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring reliable performance in demanding applications. The actuator is compliant with ISO Class 4 clean specifications, making it suitable for environments requiring stringent cleanliness standards.
The LEFS Series is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For those seeking high output, the series also offers AC servo motors with power options of 100, 200, or 400 W, enhancing high-speed transfer capabilities and supporting high acceleration and deceleration rates of up to 20000 mm/s².
Additionally, the actuator includes an internal absolute encoder for precise positioning, with a high precision type offering repeatability of ±0.01 mm. Compatible drivers for the LEFS Series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. This robust and adaptable actuator is ideal for a wide range of industrial applications, providing both performance and reliability.
- Accuracy:
- Basic
- Size:
- 40
- Motor Mounting Position:
- In-line
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
- Stroke:
- Stroke 300 mm
- Motor Option:
- Without Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 5 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
