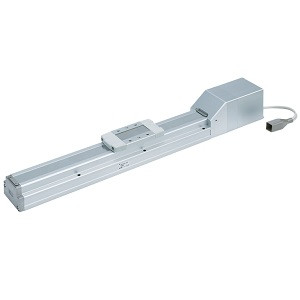

SMC LEFS40LEA-1200BN-R5C918 Ball Screw Drive Slider Actuator

SMC LEFS40LEA-1200BN-R5C918 LEFS-E Series Electric Actuator/Slider Type Ball Screw Drive Battery-less Absolute Encoder

SMC
SKU:
LEFS40LEA-1200BN-R5C918
$2,750.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEFS-E Series Electric Actuator/Slider Type Ball Screw Drive Battery-less Absolute Encoder

  • Restart from the last stop position is possible;
  • Easy operation restart after recovery of the power supply; The position information is held by the encoder even when the power supply is turned off; A return to origin operation is not necessary when the power supply is recovered;
  • No battery is installed. Reduced maintenance; No battery is used to store the position information; There is no need to manage spare batteries or replacement maintenance;
  • Max. work load: 65 kg;
  • Positioning repeatability: ±0.015 mm (High precision type) ;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1
    • Additional Information
    Accuracy:
    Basic Type
    Size:
    40
    Motor Mounting Position:
    Left Side Parallel
    Motor Type:
    Battery-less Absolute Encoder Type(Step Motor 24 VDC)
    Lead:
    LEFS25:12mm,LEFS32:16mm,LEFS40:20mm
    Stroke:
    Stroke 1200 mm
    Motor Option:
    With Lock
    Auto Switch Compatibility:
    None
    Grease Application (Seal Band Part):
    Without (Roller Specification)
    Positioning Pin Hole:
    Housing B Bottom
    Actuator Cable Type/Length:
    Robotic Cable 5 m
    Communication Protocol Input/Output:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
