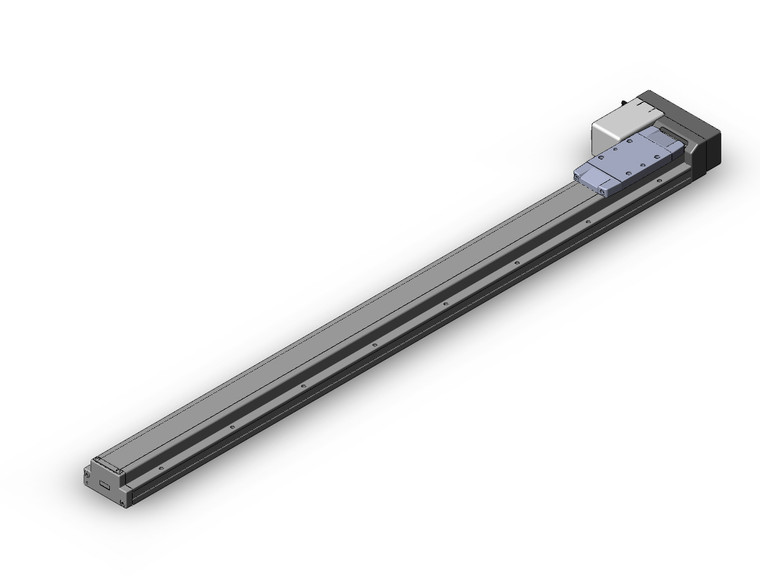

SMC LEFS40RA-1000-R3C918 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series

The SMC LEFS40RA-1000-R3C918 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and a step motor with a servo of 24 VDC, making it ideal for applications requiring accurate positioning and smooth operation. It is compatible with the JXC Series controllers, ensuring seamless integration into your automation systems. Key features include a maximum workload capacity of 65 kg and exceptional positioning repeatability of ±0.02 mm, ensuring reliable and precise movements. The actuator meets ISO Class 4 clean specifications, making it suitable for cleanroom environments. It supports a range of compatible controllers, including JXC51, JXC61, JXCE1, and more, providing flexibility in system design. The LEFS Series also offers a high output motor with options of 100/200/400 W, enhancing high-speed transfer capabilities and supporting high acceleration and deceleration rates of up to 20000mm/S². For applications requiring even greater precision, the high precision type offers positioning repeatability of ±0.01 mm. Additionally, the actuator is equipped with an internal absolute encoder for the LECSB/C/S models, ensuring accurate position feedback. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), and others, although some models have been discontinued. Overall, the SMC LEFS40RA-1000-R3C918 is a versatile and reliable choice for advanced automation applications, offering superior performance and adaptability to meet diverse operational needs.
