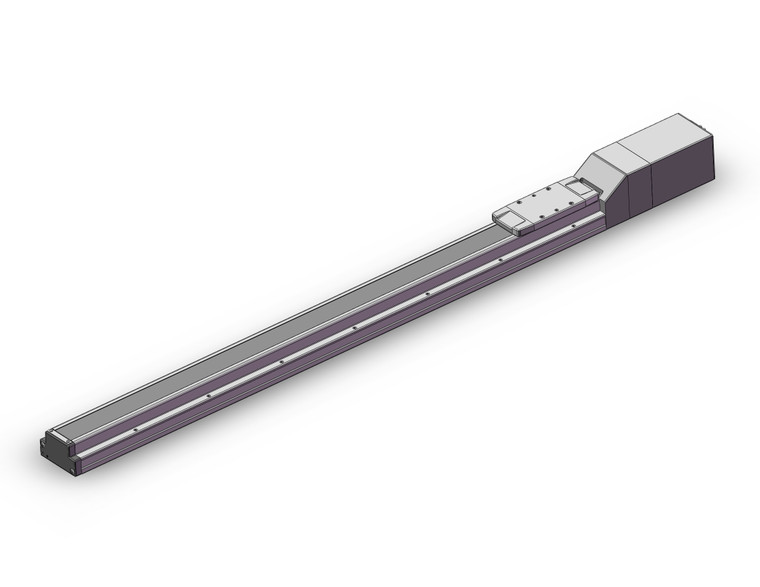

SMC LEFS40S4A-900-SA LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor
SMC
$2,255.00
The SMC LEFS40S4A-900-SA is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive powered by an AC servo motor, ensuring smooth and reliable operation. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it is ideal for applications requiring high accuracy and load handling.
The actuator is equipped with a high output motor available in 100/200/400 W options, enhancing its high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000 mm/s², making it suitable for dynamic and demanding environments. The pulse input type and internal absolute encoder (for the LECSB/C/S) further enhance its precision and control.
Complying with ISO Class 4 (ISO14644-1) clean specifications, the LEFS40S4A-900-SA is suitable for cleanroom applications, particularly the 11-LEFS model. It is compatible with a range of controllers and drivers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6, and more, providing flexibility and integration options for various systems.
Whether for industrial automation, robotics, or precision manufacturing, the SMC LEFS40S4A-900-SA electric actuator delivers exceptional performance and reliability, making it a valuable addition to any advanced motion control setup.
- Accuracy:
- Basic
- Size:
- 40
- Motor Mounting Position:
- In-line
- Motor Type:
- AC Servo Motor(Incremental Encoder), Output 400W, Actuator Size 40 mm
- Lead:
- Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
- Stroke:
- Stroke 900 mm
- Motor Option:
- Without Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Cable Type:
- Standard Cable
- Cable Length:
- 10 m
- Driver Type:
- Without Driver
- I/O Cable Length:
- Without Cable
