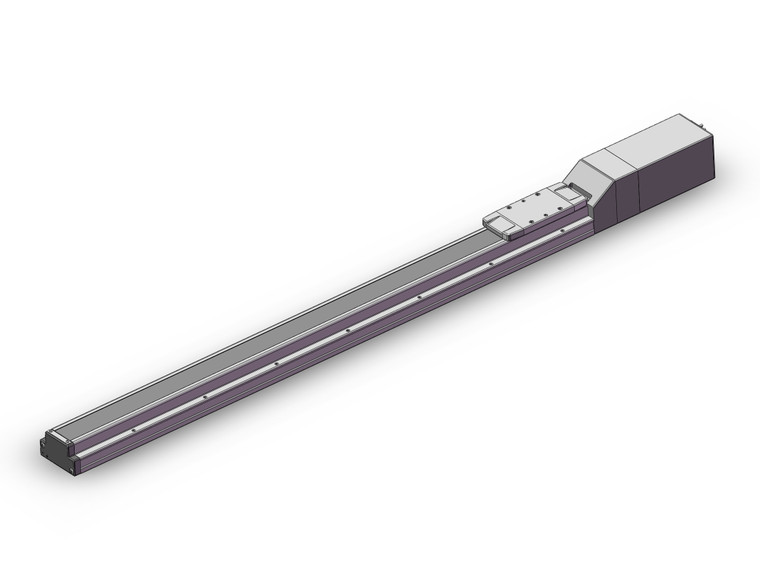

SMC LEFS40S4H-900B-S5 LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor
SMC
$2,640.00
The SMC LEFS40S4H-900B-S5 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive powered by an AC servo motor, ensuring smooth and reliable operation. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it is ideal for applications requiring high accuracy and load handling.
The actuator is equipped with a high output motor available in 100/200/400 W options, enhancing its high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000 mm/s², making it suitable for dynamic and demanding environments. The LEFS Series complies with ISO Class 4 clean specifications, ensuring it meets stringent cleanliness standards.
Compatible with a range of controllers and drivers, including JXC51, JXC61, and LECSA, among others, the LEFS40S4H-900B-S5 offers flexibility and adaptability for various industrial applications. Additionally, it includes an internal absolute encoder for precise positioning, with a high precision type offering positioning repeatability of ±0.01 mm.
Whether for automation, manufacturing, or other industrial uses, the SMC LEFS40S4H-900B-S5 electric actuator delivers exceptional performance and reliability.
- Accuracy:
- Basic
- Size:
- 40
- Motor Mounting Position:
- In-line
- Motor Type:
- AC Servo Motor(Incremental Encoder), Output 400W, Actuator Size 40 mm
- Lead:
- Size25: 20 mm, Size32: 24 mm, Size40: 30 mm
- Stroke:
- Stroke 900 mm
- Motor Option:
- With Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Cable Type:
- Standard Cable
- Cable Length:
- 5 m
- Driver Type:
- Without Driver
- I/O Cable Length:
- Without Cable
