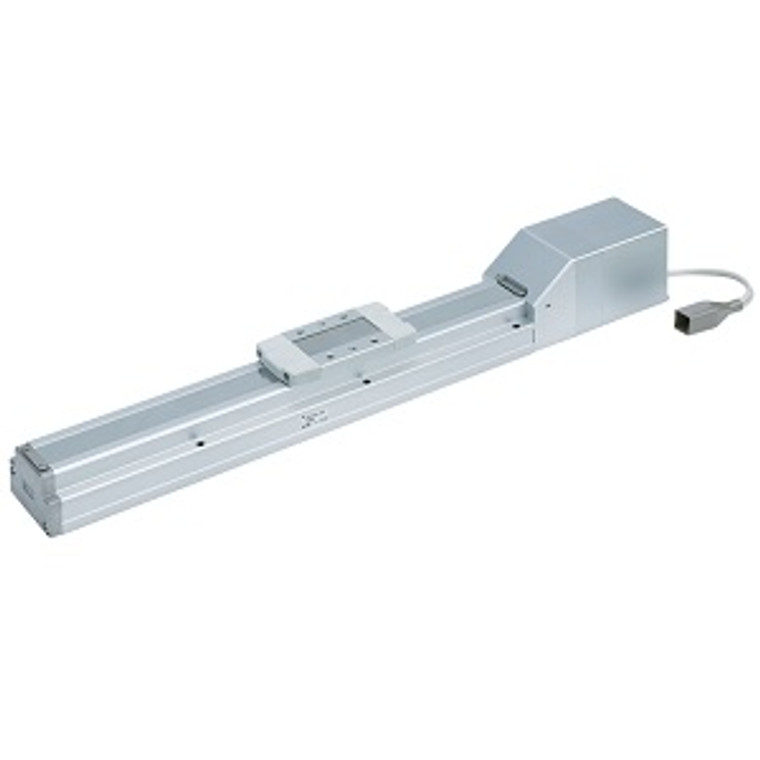

SMC LEFSH32EA-550C LEFS-E Series Electric Actuator/Slider Type Ball Screw Drive Battery-less Absolute Encoder

SMC LEFSH32EA-550C LEFS-E Series Electric Actuator/Slider Type Ball Screw Drive Battery-less Absolute Encoder

SMC
SKU:
LEFSH32EA-550C
Availability:
Factory stock
$1,285.00
Condition:
New
Current Stock:
Description

LEFS-E Series Electric Actuator/Slider Type Ball Screw Drive Battery-less Absolute Encoder

  • Restart from the last stop position is possible;
  • Easy operation restart after recovery of the power supply; The position information is held by the encoder even when the power supply is turned off; A return to origin operation is not necessary when the power supply is recovered;
  • No battery is installed. Reduced maintenance; No battery is used to store the position information; There is no need to manage spare batteries or replacement maintenance;
  • Max. work load: 65 kg;
  • Positioning repeatability: ±0.015 mm (High precision type) ;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1
