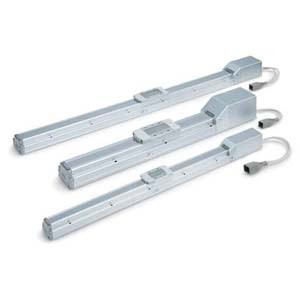

SMC LEFSH32RA-200-S3 Ball Screw Drive Actuator High Precision

SMC LEFSH32RA-200-S3 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFSH32RA-200-S3
Availability:
Factory Stock
$1,190.00
Condition:
New
Current Stock:
Description
The SMC LEFSH32RA-200-S3 is a versatile electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor with a servo capability at 24 VDC. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring accurate and reliable performance in various applications. Engineered to meet clean specifications, the LEFSH32RA-200-S3 complies with ISO Class 4 standards (ISO14644-1) for the 11-LEFS model, making it suitable for environments requiring stringent cleanliness. The actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For applications demanding high output, the LEFS Series AC Servo Motor variant offers power options of 100, 200, or 400 W, with enhanced high-speed transfer capabilities and impressive acceleration/deceleration rates of up to 20000 mm/s². The pulse input type actuator is equipped with an internal absolute encoder, providing high precision positioning repeatability of ±0.01 mm. Compatible with a variety of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, the LEFSH32RA-200-S3 is a reliable choice for industries requiring high precision and clean operation. Note that some driver models have been discontinued.
Additional Information
Accuracy:
High Precision Type
Size:
32
Motor Mounting Position:
Right Side Parallel
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
Stroke:
Stroke 200 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Standard Cable
Actuator Cable Length:
3 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
