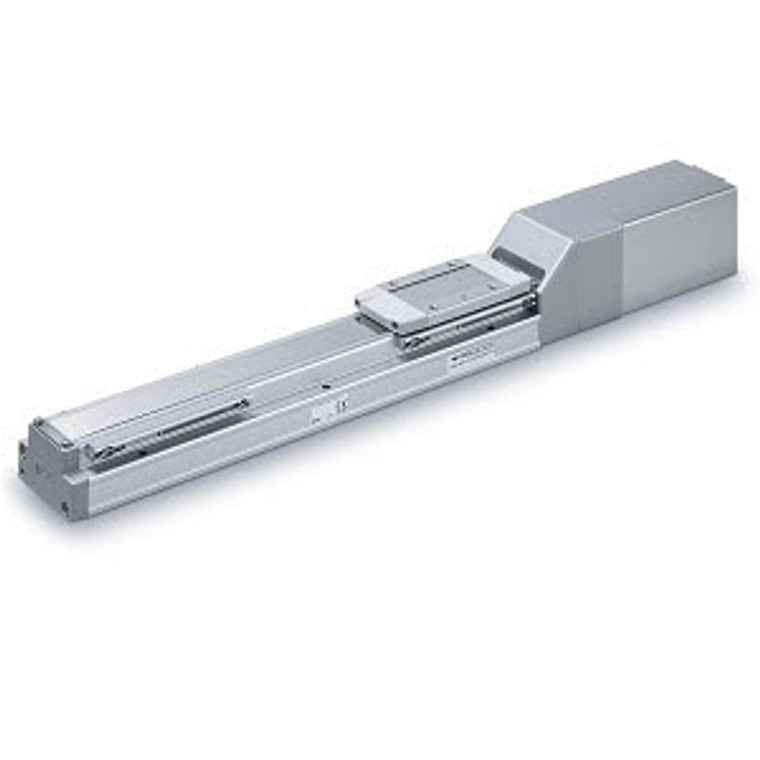

SMC LEFSH40LS8A-1200BC-S5B21 Hi Prec Ball Screw Drive Slider Actuator

SMC LEFSH40LS8A-1200BC-S5B21 LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor

SMC
SKU:
LEFSH40LS8A-1200BC-S5B21
$4,510.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor

Series LEFS Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Max. work load: 65 kg;
  • Positioning repeatability: ±0.02 mm;
  • Clean specification: Complies with ISO Class 4 (ISO14644-1) (11-LEFS only);
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued);;Series LEFS AC Servo Motor;
  • High output motor (100/200/400 W);
  • Improved high speed transfer ability;
  • High acceleration/deceleration?20000mm/S2?;
  • Pulse input type;
  • With internal absolute encoder (For the LECSB/C/S);
  • Positioning repeatability: ±0.01 mm (High precision type);
  • Clean specification: Complies with ISO Class 4 (ISO14644-1) (11-LEFS only);
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
    • Additional Information
    Accuracy:
    High Precision Type
    Size:
    40
    Motor Mounting Position:
    Left Side Parallel
    Motor Type:
    AC Servo Motor(Absolute Encoder), Output 400W, Actuator Size 40 mm
    Lead:
    Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
    Stroke:
    Stroke 1200 mm
    Motor Option:
    With Lock
    Auto Switch Mounting Bracket:
    1 pc.
    Grease Application (Seal Band Part):
    With
    Positioning Pin Hole:
    Housing B Bottom
    Cable Type:
    Standard Cable
    Cable Length:
    5 m
    Driver Type:
    LECSB2-T, Power Supply Voltage 200V To 240V
    I/O Cable Length:
    1.5 m
