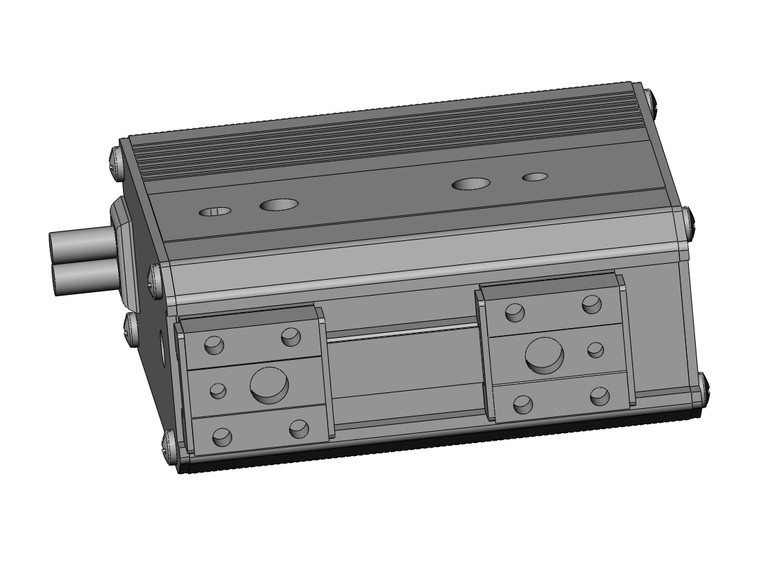

SMC LEHF20K2-24-R3 LEHF Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)

SMC
SKU:
LEHF20K2-24-R3
Availability:
Contact us to confirm availability and lead times.
$1,130.00
Condition:
New
Current Stock:
The SMC LEHF20K2-24-R3 LEHF Series Electric Gripper is a versatile 2-finger type step motor designed for precision and efficiency. This servo-driven gripper operates at 24 VDC and offers easy setup with just two parameters: position and force. The actuator comes pre-configured with the controller, ensuring seamless integration and operation. Key features include a drop prevention function with a self-lock mechanism that not only enhances safety but also reduces power consumption. The gripper is equipped with a gripping check function and allows for customizable settings of position, speed, and force across 64 points, providing flexibility for various applications. Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECPA, this electric gripper is a reliable choice for automation needs. Note that some controllers like LECP6 and LECPMJ have been discontinued.
Size:
20
Stroke:
Stroke 24 mm
Motor Cable Entry:
Basic (Entry On The Right Side)
Actuator Cable Type:
Robotic Cable (Flexible Cable)
Actuator Cable Length:
3 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
