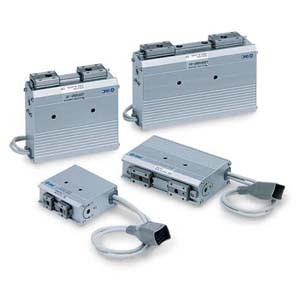

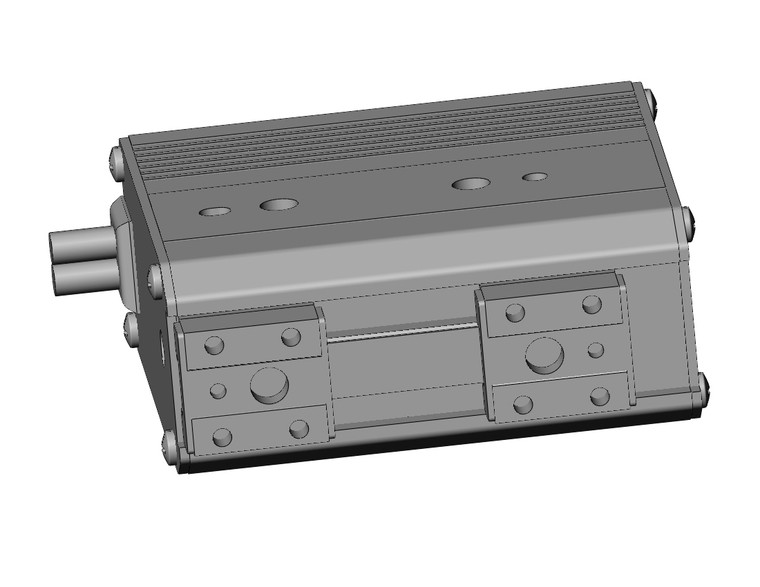

SMC LEHF20K2-24-RA LEHF Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)
SMC
$1,270.00
The SMC LEHF20K2-24-RA LEHF Series Electric Gripper is a versatile and efficient 2-finger type step motor designed for precision and reliability. This servo-driven gripper operates at 24 VDC and offers easy setting capabilities, allowing users to configure position and force with just two data points. The actuator comes pre-configured with the controller, ensuring seamless integration and operation.
Key features include a drop prevention function, thanks to a built-in self-lock mechanism that not only enhances safety but also reduces power consumption. The gripper is equipped with a gripping check function and allows for detailed customization with the ability to set position, speed, and force across 64 points.
Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the now discontinued LECP6 and LECPMJ models, this electric gripper is designed to meet diverse application needs. Whether for industrial automation or precision handling tasks, the SMC LEHF20K2-24-RA is engineered to deliver exceptional performance and adaptability.
- Size:
- 20
- Stroke:
- Stroke 24 mm
- Motor Cable Entry:
- Basic (Entry On The Right Side)
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 10 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
