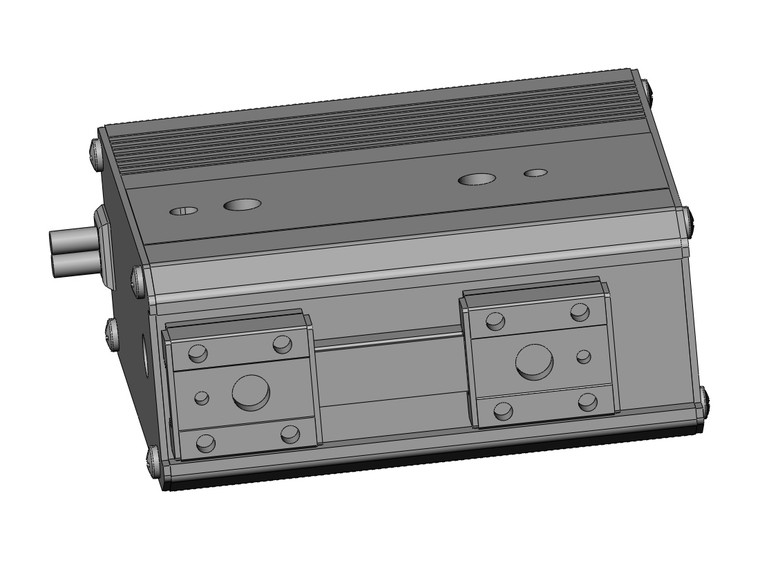

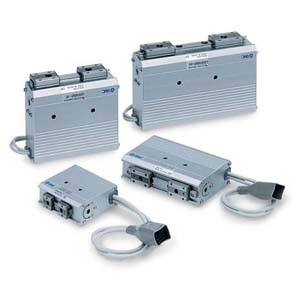

SMC LEHF32K2-32 LEHF Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)
SMC
$1,045.00
The SMC LEHF32K2-32 LEHF Series Electric Gripper is a versatile 2-finger type step motor designed for precision and efficiency. This gripper operates on a Servo 24 VDC system, ensuring reliable performance. It features an easy setting process, requiring only two data inputs: position and force. The actuator and controller are provided as a set, with the controller pre-configured with the actuator's data for seamless integration.
This electric gripper is equipped with a drop prevention function, thanks to its self-lock mechanism, which not only enhances safety but also reduces power consumption. Additionally, it includes a gripping check function to ensure secure handling of objects. Users can customize the gripper's operation by setting the position, speed, and force across 64 points, allowing for precise control in various applications.
The LEHF32K2-32 is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models. This compatibility ensures flexibility and adaptability in different setups, making it an ideal choice for automation and robotic applications.
- Size:
- 32
- Stroke:
- Stroke 32 mm
- Motor Cable Entry:
- Basic (Entry On The Right Side)
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
