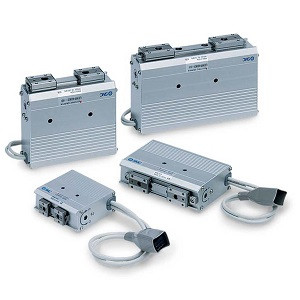

SMC LEHF40K2-80-R5C917 LEHF Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$2,055.00
The SMC LEHF40K2-80-R5C917 is a cutting-edge electric gripper from the LEHF Series, designed with a 2-finger type step motor (Servo 24 VDC) that seamlessly integrates with the JXC Series. This advanced gripper offers effortless setup, requiring only two data inputs: position and force. The actuator comes pre-configured with the controller, ensuring a hassle-free experience.
Key features include a drop prevention function, thanks to an integrated self-lock mechanism that not only enhances safety but also reduces power consumption. The gripper is equipped with a gripping check function and allows for precise adjustments of position, speed, and force across 64 points.
Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the now-discontinued LECP6 and LECPMJ, this electric gripper is a versatile and reliable choice for various applications.
- Size:
- 40
- Lead:
- Basic Type
- Type:
- 2-finger Type
- Stroke:
- Stroke 80 mm
- Motor Cable Entry:
- Basic (Entry On The Right Side)
- Actuator Cable Type/Length:
- Robotic Cable 5 m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- Screw Mounting
- Communication Plug Connector I/O Cable:
- Without Plug Connector
