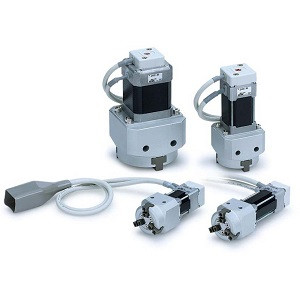

SMC LEHS32K3-8-R3C918 LEHS Series Electric Gripper 3-Finger Type Step Motor (Servo 24 VDC) Applicable To The JXC Series
SMC
$1,645.00
The SMC LEHS32K3-8-R3C918 is a cutting-edge electric gripper from the LEHS Series, designed with a 3-finger type step motor and powered by a servo 24 VDC. This gripper is specifically engineered to be compatible with the JXC Series controllers, offering seamless integration and enhanced performance.
Key features of this electric gripper include an easy setting capability, allowing users to configure position and force with just two data points. The controller comes pre-set with actuator data, ensuring a hassle-free setup as both the actuator and controller are sold as a package. A notable drop prevention function is incorporated, featuring a self-lock mechanism across all series, which not only enhances safety but also reduces power consumption.
The gripper is equipped with a gripping check function, providing users with the ability to set position, speed, and force across 64 points, offering precise control and adaptability for various applications. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the now discontinued LECP6 and LECPMJ models.
Ideal for industrial automation and robotics, the SMC LEHS32K3-8-R3C918 electric gripper is a reliable and efficient solution for enhancing productivity and precision in your operations.
- Size:
- 32
- Motor size:
- Basic Style
- Lead:
- Basic Type
- Type:
- 3 Fingers Type
- Stroke:
- Stroke 8 mm
- Motor Cable Entry:
- Basic (Entry On The Left Side)
- Actuator Cable Type/Length:
- Robotic Cable 3 m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis?Specification:Standard
- Mounting:
- DIN Rail Mounting
- Communication Plug Connector I/O Cable:
- Without Plug Connector
