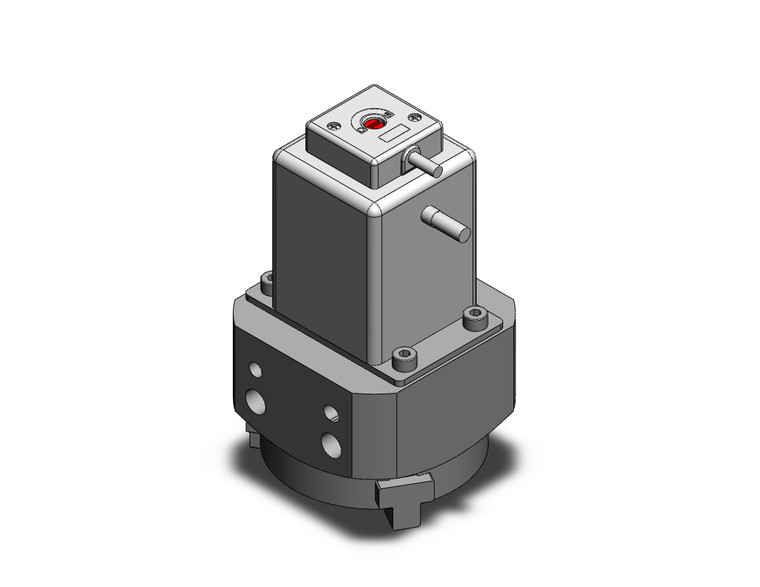

SMC LEHS32K3-8-S1 LEHS Series Electric Gripper 3-Finger Type Step Motor (Servo 24 VDC)
SMC
$1,050.00
The SMC LEHS32K3-8-S1 LEHS Series Electric Gripper is a versatile 3-finger type step motor designed for precision and efficiency. Operating on a Servo 24 VDC, this gripper offers easy setting capabilities, allowing you to configure position and force with just two data points. The controller comes pre-set with actuator data, ensuring seamless integration as a package.
Equipped with a drop prevention function, the gripper features a self-lock mechanism across all series, significantly reducing power consumption. It also includes a gripping check function and allows for the setting of position, speed, and force across 64 points, providing flexibility for various applications.
Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models, this electric gripper is engineered for reliability and performance in demanding environments.
- Size:
- 32
- Motor size:
- Basic Style
- Stroke:
- Stroke 8 mm
- Motor Cable Entry:
- Basic (Entry On The Left Side)
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 1.5 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
