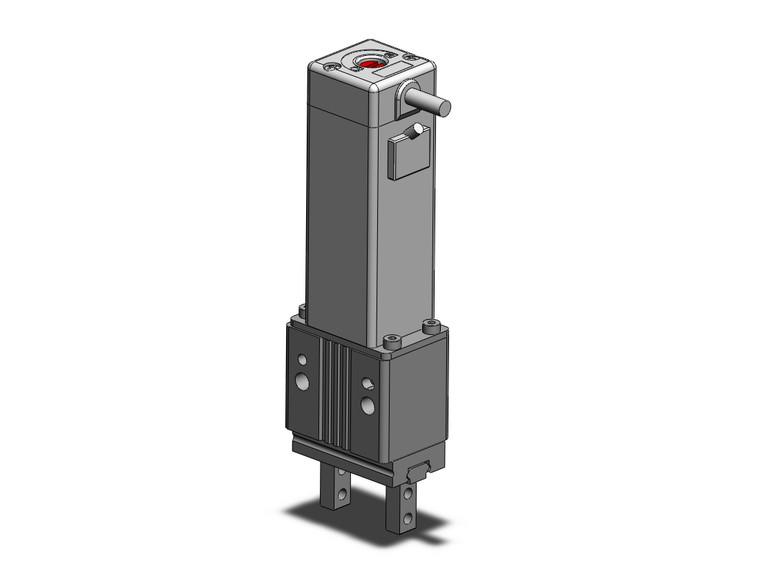

SMC LEHZ10K2-4-R1 LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)
SMC
$765.00
The SMC LEHZ10K2-4-R1 LEHZ Series Electric Gripper is a versatile 2-finger type step motor designed for precision and efficiency. This servo-driven gripper operates at 24 VDC and offers easy setting capabilities, allowing you to configure position and force with just two data points. The actuator comes pre-configured with the controller, ensuring seamless integration and operation.
Equipped with a drop prevention function, the gripper features a self-lock mechanism across all series, significantly reducing power consumption. It also includes a gripping check function and allows for the setting of position, speed, and force across 64 points, providing flexibility for various applications.
Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models, this electric gripper is an ideal choice for automation systems requiring reliable and precise gripping solutions.
- Size:
- 10
- Motor size:
- Basic Style
- Stroke:
- Stroke 4 mm
- Finger Option:
- Basic (Tapped in the direction of opening/closing)
- Motor Cable Entry:
- Basic (Entry On The Left Side)
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 1.5 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
