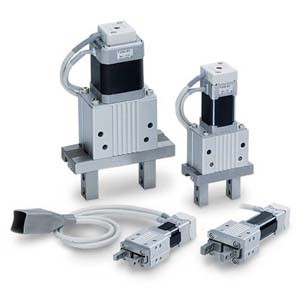

SMC LEHZ10K2-4-S1AP1 LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)
SMC
$945.00
The SMC LEHZ10K2-4-S1AP1 LEHZ Series Electric Gripper is a versatile 2-finger type step motor designed for precision and efficiency. Operating on a 24 VDC servo, this gripper offers easy setting capabilities, allowing you to configure position and force with just two data points. The actuator comes pre-configured with the controller, ensuring seamless integration and operation.
A standout feature is its drop prevention function, equipped with a self-lock mechanism across all series, which not only enhances safety but also reduces power consumption. The gripper includes a gripping check function and allows for detailed customization with the ability to set position, speed, and force across 64 points.
Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECPA, this electric gripper is a reliable choice for various industrial applications. Note that some controllers like LECP6 and LECPMJ have been discontinued.
- Size:
- 10
- Motor size:
- Basic Style
- Stroke:
- Stroke 4 mm
- Finger Option:
- Basic (Tapped in the direction of opening/closing)
- Motor Cable Entry:
- Basic (Entry On The Left Side)
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 1.5 m
- Controller Type:
- LECPA Pulse Input Type PNP
- I/O Cable Length, Communication Plug:
- 1.5 m
- Controller Mounting:
- Screw Mounting
