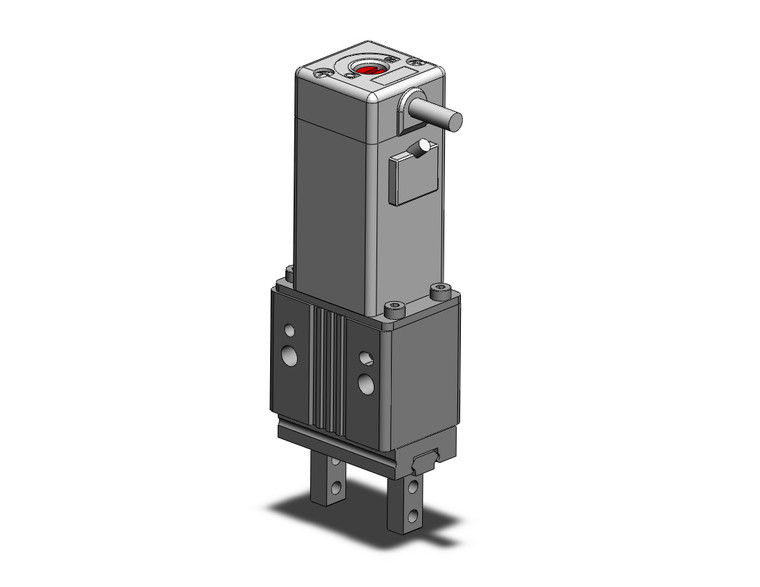

SMC LEHZ10LK2-4-R3 LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)
SMC
$775.00
The SMC LEHZ10LK2-4-R3 LEHZ Series Electric Gripper is a versatile 2-finger type step motor designed for precision and efficiency. Operating on a 24 VDC servo, this gripper offers easy setting capabilities, allowing you to configure position and force with just two data points. The actuator comes pre-configured with the controller, ensuring seamless integration and operation. A standout feature is its drop prevention function, equipped with a self-lock mechanism across all series, which not only enhances safety but also reduces power consumption. The gripper includes a gripping check function and allows for detailed customization with the ability to set position, speed, and force across 64 points. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the now discontinued LECP6 and LECPMJ models. This electric gripper is ideal for applications requiring precise control and reliability.
- Size:
- 10
- Motor size:
- Compact
- Stroke:
- Stroke 4 mm
- Finger Option:
- Basic (Tapped in the direction of opening/closing)
- Motor Cable Entry:
- Basic (Entry On The Left Side)
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 3 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
