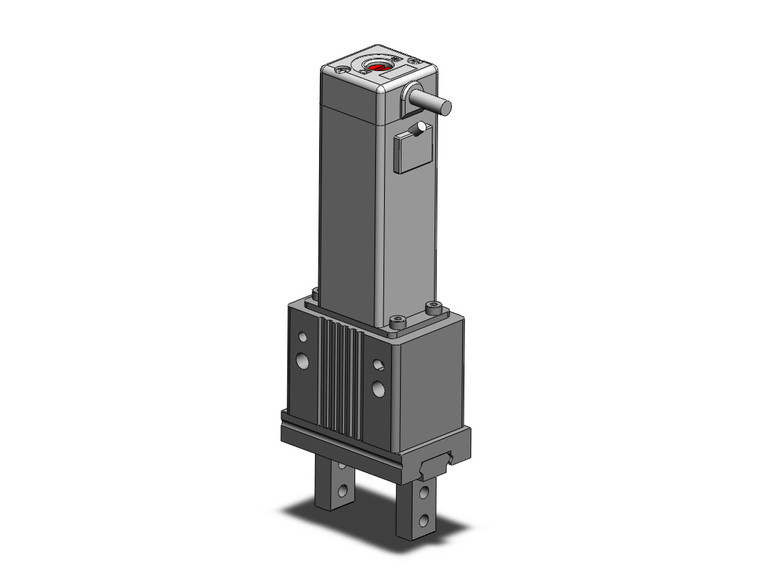

SMC LEHZ16K2-6-S1 2 Finger Gripper, Screw Drive

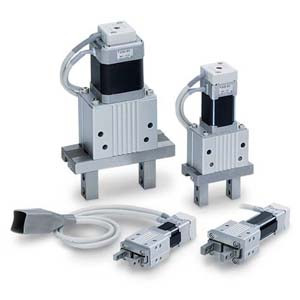

SMC LEHZ16K2-6-S1 LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)

SMC
SKU:
LEHZ16K2-6-S1
Availability:
Factory Stock
$720.00
Condition:
New
Current Stock:
Description
The SMC LEHZ16K2-6-S1 LEHZ Series Electric Gripper is a versatile 2-finger type step motor designed for precision and efficiency. Operating on a Servo 24 VDC, this gripper offers easy setting capabilities, allowing you to configure position and force with just two data points. The actuator comes pre-configured with the controller, ensuring seamless integration and operation. Key features include a drop prevention function with a self-lock mechanism, reducing power consumption and enhancing safety across all series. The gripper also includes a gripping check function and allows for the setting of position, speed, and force across 64 points, providing flexibility for various applications. Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the now discontinued LECP6 and LECPMJ, this electric gripper is a reliable choice for automation needs.
Additional Information
Size:
16
Motor size:
Basic Style
Stroke:
Stroke 6 mm
Finger Option:
Basic (Tapped in the direction of opening/closing)
Motor Cable Entry:
Basic (Entry On The Left Side)
Actuator Cable Type:
Standard Cable
Actuator Cable Length:
1.5 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
