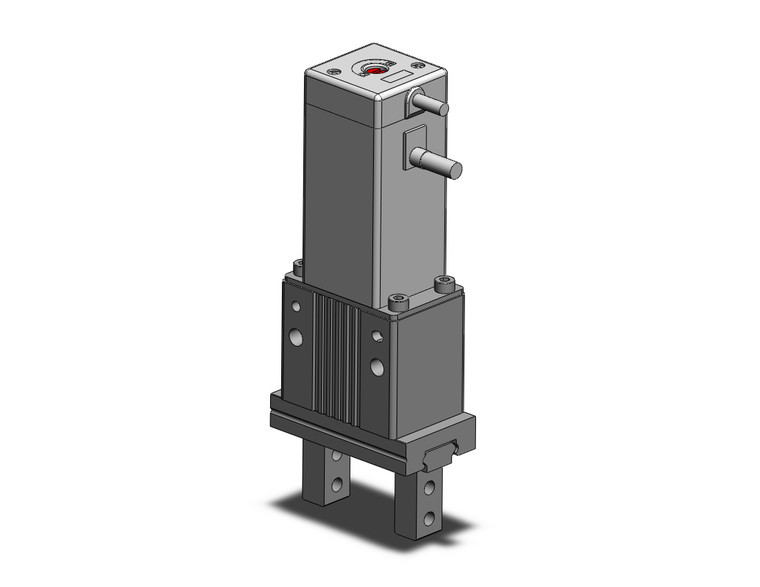

SMC LEHZ20K2-10-R5 LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)
SMC
$865.00
The SMC LEHZ20K2-10-R5 LEHZ Series Electric Gripper is a versatile 2-finger type step motor designed for precision and efficiency. Operating on a 24 VDC servo, this gripper offers easy setting capabilities, allowing you to configure position and force with just two data points. The actuator comes pre-configured with the controller, ensuring seamless integration and operation.
Key features include a drop prevention function with a self-lock mechanism across all series, significantly reducing power consumption. The gripper also includes a gripping check function and allows for the setting of position, speed, and force across 64 points, providing flexibility for various applications. Compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models, this electric gripper is engineered for reliability and performance in demanding environments.
- Size:
- 20
- Motor size:
- Basic Style
- Stroke:
- Stroke 10 mm
- Finger Option:
- Basic (Tapped in the direction of opening/closing)
- Motor Cable Entry:
- Basic (Entry On The Left Side)
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 5 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
