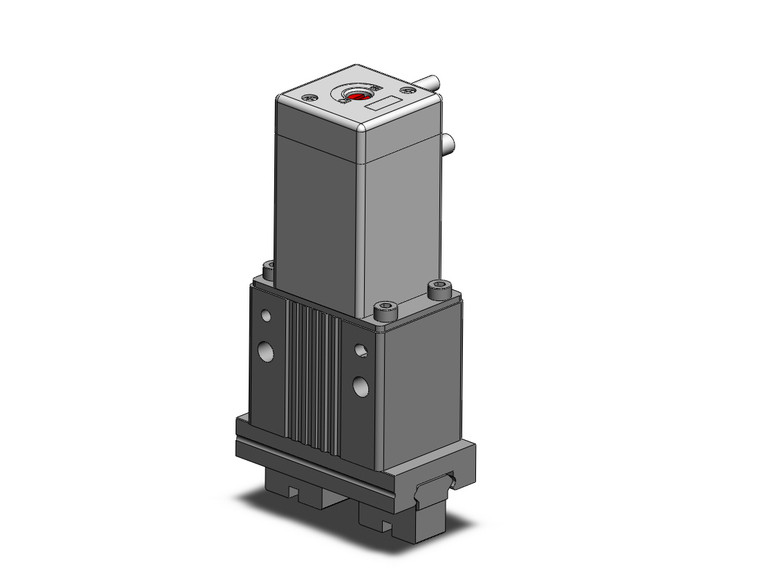

SMC LEHZ20LK2-10CF-R5 2 finger gripper, screw drive

SMC LEHZ20LK2-10CF-R5 LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)

SMC
SKU:
LEHZ20LK2-10CF-R5
Availability:
Contact us to confirm availability and lead times.
$865.00
Condition:
New
Current Stock:
Description

LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)

  • Easy setting: Data can be set 2 items, position and force; The controller is already set with the data of the actuator; (The actuator and controller are sold as a package.);
  • Drop prevention function is provided. (Self-lock mechanism is provided; for all series.);
  • Power consumption reduced by self-lock mechanism;
  • Gripping check function is provided;
  • Possible to set position, speed and force. (64 points);
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, LECP6(Manufacture Discontinued), LECPMJ(Manufacture Discontinued)
    • Additional Information
    Size:
    20
    Motor size:
    Compact
    Stroke:
    Stroke 10 mm
    Finger Option:
    Flat fingers
    Motor Cable Entry:
    Entry On The Front Side
    Actuator Cable Type:
    Robotic Cable (Flexible Cable)
    Actuator Cable Length:
    5 m
    Controller Type:
    Without Controller
    I/O Cable Length, Communication Plug:
    Without Cable, Without Communication Plug Connector
    Controller Mounting:
    Screw Mounting
