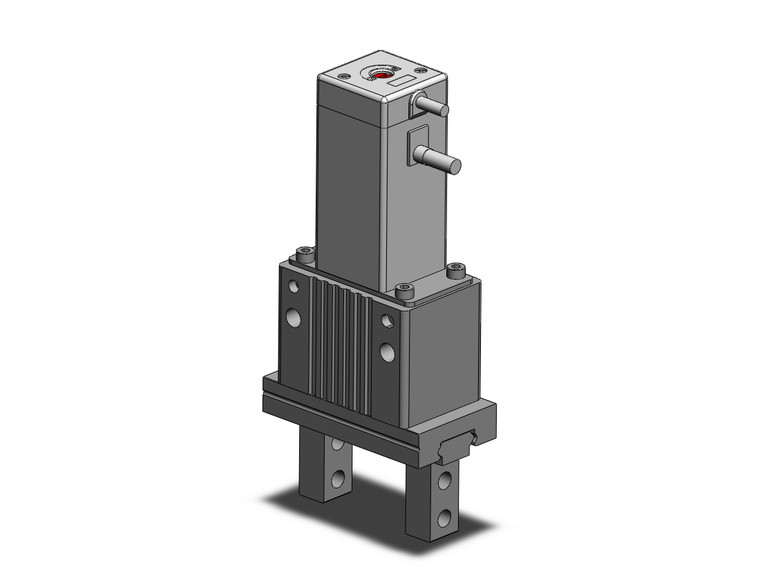

SMC LEHZ25K2-14B-R3 LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)
SMC
$910.00
The SMC LEHZ25K2-14B-R3 LEHZ Series Electric Gripper is a versatile 2-finger type step motor designed for precision and efficiency. Operating on a Servo 24 VDC, this gripper offers easy setting capabilities, allowing you to configure position and force with just two data points. The package includes both the actuator and controller, pre-set for seamless integration. A self-lock mechanism ensures drop prevention and reduces power consumption, enhancing safety and energy efficiency. The gripper also features a gripping check function and allows for the setting of position, speed, and force across 64 points. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, and the discontinued LECP6 and LECPMJ models. This electric gripper is ideal for applications requiring precise control and reliability.
- Size:
- 25
- Motor size:
- Basic Style
- Stroke:
- Stroke 14 mm
- Finger Option:
- Through-holes In Opening/Closing Direction
- Motor Cable Entry:
- Basic (Entry On The Left Side)
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 3 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
