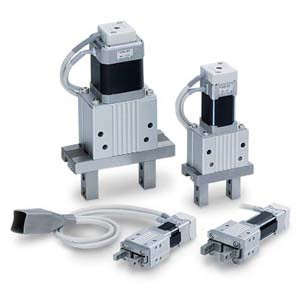

SMC LEHZ32K2-22C-R3 LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)

SMC LEHZ32K2-22C-R3 LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)

SMC
SKU:
LEHZ32K2-22C-R3
Availability:
Factory Stock
$1,020.00
Condition:
New
Current Stock:
Description

LEHZ Series Electric Gripper 2-Finger Type Step Motor (Servo 24 VDC)

  • Easy setting: Data can be set 2 items, position and force;?The controller is already set with the data of the actuator;?(The actuator and controller are sold as a package.);
  • Drop prevention function is provided. (Self-lock mechanism is provided;?for all series.);
  • Power consumption reduced by self-lock mechanism;
  • Gripping check function is provided;
  • Possible to set position, speed and force. (64 points);
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, LECP6(Manufacture Discontinued), LECPMJ(Manufacture Discontinued)
    • Additional Information
    Size:
    32
    Motor size:
    Basic Style
    Stroke:
    Stroke 22 mm
    Finger Option:
    Flat fingers
    Motor Cable Entry:
    Basic (Entry On The Left Side)
    Actuator Cable Type:
    Robotic Cable (Flexible Cable)
    Actuator Cable Length:
    3 m
    Controller Type:
    Without Controller
    I/O Cable Length, Communication Plug:
    Without Cable, Without Communication Plug Connector
    Controller Mounting:
    Screw Mounting
