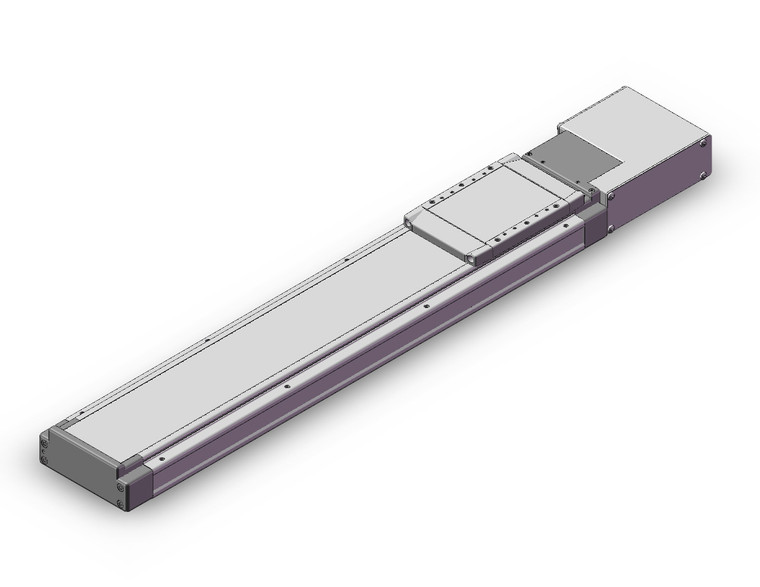

SMC LEJB40S2T-500-R5A1H LEJB-AC Series Electric Actuator/High Rigidity Slider Type Belt Drive AC Servo Motor
SMC
$4,745.00
The SMC LEJB40S2T-500-R5A1H is a high-performance electric actuator from the LEJB-AC Series, designed for applications requiring precision and durability. This actuator features a high rigidity slider type belt drive, powered by an AC servo motor, ensuring reliable and efficient operation. With a maximum stroke of 3000 mm and a top speed of 3000 mm/s, it is ideal for high-speed automation tasks. The actuator also boasts a maximum acceleration and deceleration of 20000 mm/S2, providing rapid response times for dynamic applications. It is compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, although some models like LECSB-S, LECSC-S, and LECSS-S have been discontinued. This actuator is perfect for industries that demand high precision and robust performance.
- Size:
- 40
- Motor Type:
- AC servo motor(Incremental encoder), Output 100W, Actuator size 40 mm
- Stroke:
- Stroke 500 mm
- Motor Option:
- Without Lock
- Cable Type:
- Robotic Cable(Flexible Cable)
- Cable Length:
- 5 m
- Driver Type:
- LECSA1, Power Supply Voltage 100V To 120V
- I/O Cable Length:
- With Connector
