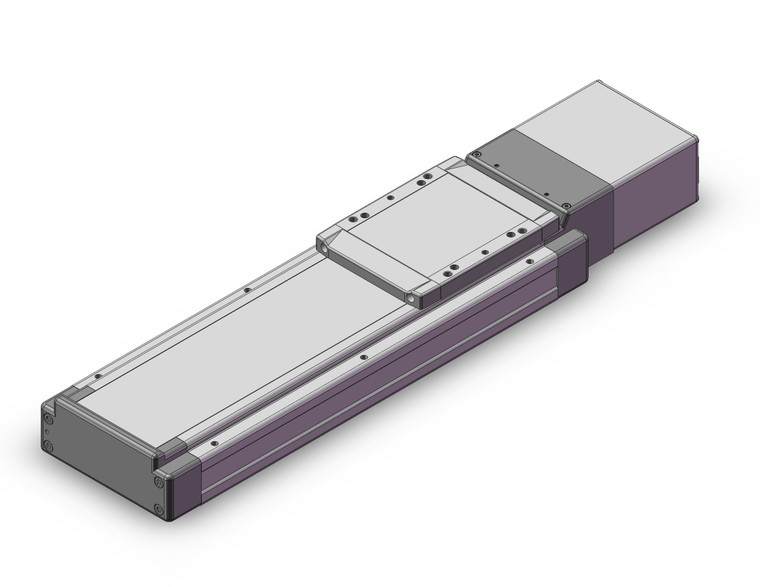

SMC LEJS63S7A-300-S2B1 LEJS-AC Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor
SMC
$5,415.00
The SMC LEJS63S7A-300-S2B1 is a high-performance electric actuator from the LEJS-AC Series, designed with a high rigidity slider type ball screw drive and powered by an AC servo motor. This actuator boasts a low-profile design with a reduced height dimension by approximately 36%, enhancing its stability with a low center of gravity. It can handle a maximum workload of 85 kg, ensuring robust performance for demanding applications. With a remarkable positioning repeatability of ±0.02 mm, it guarantees precision in every operation. The actuator supports a maximum acceleration/deceleration of 20000 mm/S², making it suitable for high-speed applications. Additionally, it meets clean specifications compliant with ISO Class 4 (Class 10) standards, specifically for the 11-LEJS model. The actuator is compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models, providing flexibility in integration and operation.
- Accuracy:
- Basic
- Size:
- 63
- Motor Type:
- AC servo motor(Absolute encoder), Output 200W, Actuator size 63 mm
- Lead:
- Size40:16mm, Size63:20 mm
- Stroke:
- Stroke 300 mm
- Motor Option:
- Without Lock
- Cable Type:
- Standard Cable
- Cable Length:
- 2 m
- Driver Type:
- LECSB1, Power Supply Voltage 100V To 120V(Manufacture discontinued)
- I/O Cable Length:
- Without Cable
