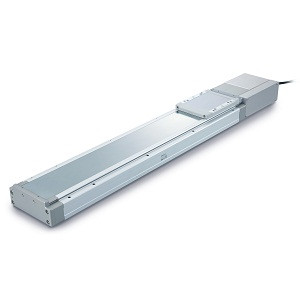

SMC LEJSH40T6B-800B-RA92H LEJS Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor Corresponding To LECS -T Series Driver

SMC LEJSH40T6B-800B-RA92H LEJS Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor Corresponding To LECS -T Series Driver

SMC
SKU:
LEJSH40T6B-800B-RA92H
Availability:
Contact us to confirm availability and lead times.
$5,898.00
Condition:
New
Current Stock:
Description

LEJS Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor Corresponding To LECS -T Series Driver

  • Low-profile/low center of gravity: Height dimension reduced by approx. 36% (Reduced by 32 mm);
  • Max. work load: 85 kg;
  • Positioning repeatability: ±0.02 mm;
  • Max. acceleration/deceleration: 20000 mm/S2;
  • Clean specification: Complies with ISO Class 4 (Class 10) (11-LEJS only);
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued),LECSC-S (Manufacture Discontinued),LECSS-S (Manufacture Discontinued)
    • Additional Information
    Accuracy:
    High Precision Type
    Size:
    40
    Motor Type:
    AC servo motor(Absolute encoder), Output 100W, Actuator size 40 mm
    Lead:
    Size40:8mm, Size63:10 mm
    Stroke:
    Stroke 800 mm
    Motor Option:
    With Lock
    Cable Type:
    Robotic Cable(Flexible Cable)
    Cable Length:
    10 m
    Driver Type:
    LECSN2-T-9, Power Supply Voltage 200V To 240V
    I/O Cable Length:
    Without Cable (Connector Only)
