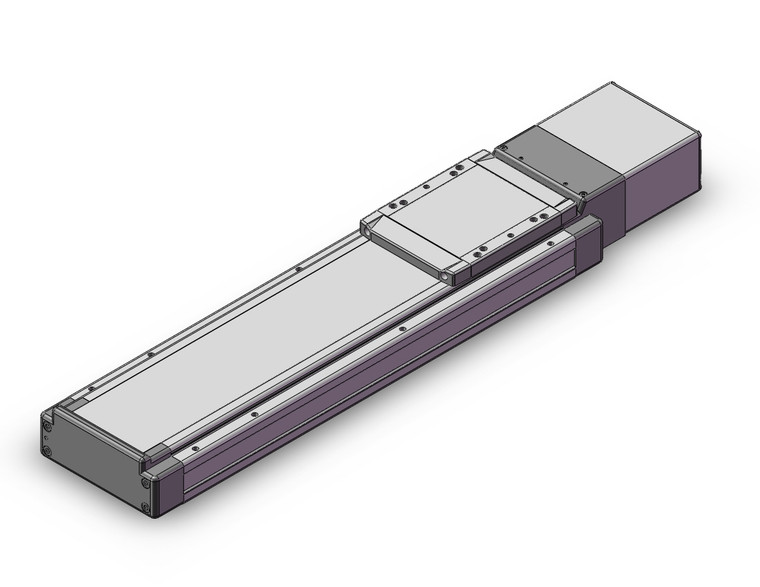

SMC LEJSH63S7B-400-S5 LEJS-AC Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor
SMC
$4,535.00
Introducing the SMC LEJSH63S7B-400-S5 LEJS-AC Series Electric Actuator, a high-performance solution designed for precision and efficiency. This high rigidity slider type ball screw drive AC servo motor boasts a low-profile design with a reduced height dimension by approximately 36%, enhancing stability with a lower center of gravity. It supports a maximum workload of 85 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring precise operations. With a maximum acceleration/deceleration of 20000 mm/S², it delivers rapid and smooth motion control. The actuator meets clean specifications, complying with ISO Class 4 (Class 10) standards, making it suitable for cleanroom environments. It is compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and more, providing flexibility for various applications. Note that some compatible drivers have been discontinued. Ideal for industries requiring high precision and reliability, this electric actuator is engineered to meet the demands of modern automation systems.
- Accuracy:
- High Precision Type
- Size:
- 63
- Motor Type:
- AC servo motor(Absolute encoder), Output 200W, Actuator size 63 mm
- Lead:
- Size40:8mm, Size63:10 mm
- Stroke:
- Stroke 400 mm
- Motor Option:
- Without Lock
- Cable Type:
- Standard Cable
- Cable Length:
- 5 m
- Driver Type:
- Without Driver
- I/O Cable Length:
- Without Cable
