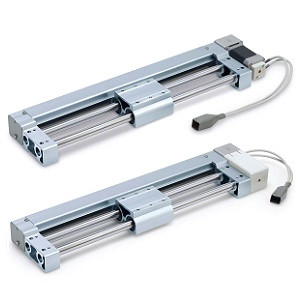

SMC LEL25LT-200-S5C918 electric actuator guide rod slider, belt electric actuator

SMC LEL25LT-200-S5C918 LEL Series Electric Actuator/Guide Rod Slider Belt Drive Step Motor (Servo/24 VDC) Applicable To The JXC Series

SMC
SKU:
LEL25LT-200-S5C918
$1,165.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEL Series Electric Actuator/Guide Rod Slider Belt Drive Step Motor (Servo/24 VDC) Applicable To The JXC Series

  • Low-profile/Flat Height: 48 mm;
  • Profile reduced by side mounting of motor; No interference with motor, even with large workpieces;
  • Auto switch mountable (Made to Order);
  • Max. stroke: 1000 mm;
  • Transfer speed: 1000 mm/s;
  • Positioning repeatability: ±0.08 mm;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1
    • Additional Information
    Size:
    25
    Bearing Type:
    Ball Bushing Bearing
    Equivalent Lead:
    48 mm
    Stroke:
    Stroke 200 mm
    Motor Option:
    Without Option
    Switch Rail Option:
    Without Option
    Actuator Cable Type/Length:
    Standard Cable 5 m
    Communication Protocol:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Without Controller/ Without Plug Connector
