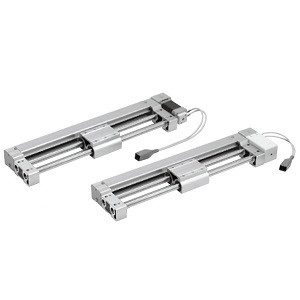

SMC LEL25LT-400C LEL Series Electric Actuator/Guide Rod Slider Belt Drive Step Motor (Servo 24 VDC)
SMC
$630.00
The SMC LEL25LT-400C is a versatile electric actuator designed for precision and efficiency. Featuring a low-profile design with a flat height of just 48 mm, this actuator is engineered to minimize space usage by side mounting the motor, ensuring no interference even with larger workpieces. It offers a maximum stroke of 1000 mm and a transfer speed of up to 1000 mm/s, making it ideal for high-speed applications. The actuator boasts a positioning repeatability of ±0.08 mm, ensuring accurate and reliable performance. Additionally, it is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, and LECP1, providing flexibility for various automation needs. An auto switch is also mountable as a made-to-order option, further enhancing its adaptability.
- Size:
- 25
- Bearing Type:
- Ball Bushing Bearing
- Equivalent Lead:
- 48 mm
- Stroke:
- Stroke 400 mm
- Motor Option:
- With Motor Cover
- Switch Rail Option:
- Without Option
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
