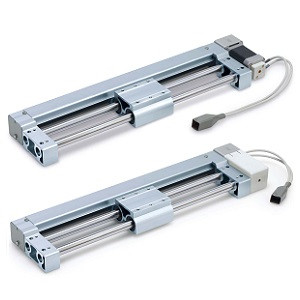

SMC LEL25MT-500CR-R3CL17 LEL Series Electric Actuator/Guide Rod Slider Belt Drive Step Motor (Servo/24 VDC) Applicable To The JXC Series

SMC LEL25MT-500CR-R3CL17 LEL Series Electric Actuator/Guide Rod Slider Belt Drive Step Motor (Servo/24 VDC) Applicable To The JXC Series

SMC
SKU:
LEL25MT-500CR-R3CL17
Availability:
Factory Stock
$1,240.00
Condition:
New
Current Stock:
Description

LEL Series Electric Actuator/Guide Rod Slider Belt Drive Step Motor (Servo/24 VDC) Applicable To The JXC Series

  • Low-profile/Flat Height: 48 mm;
  • Profile reduced by side mounting of motor;?No interference with motor, even with large workpieces;
  • Auto switch mountable (Made to Order);
  • Max. stroke: 1000 mm;
  • Transfer speed: 1000 mm/s;
  • Positioning repeatability: ±0.08 mm;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1
    • Additional Information
    Size:
    25
    Bearing Type:
    Sliding Bearing
    Equivalent Lead:
    48 mm
    Stroke:
    Stroke 500 mm
    Motor Option:
    With Motor Cover
    Switch Rail Option:
    With Magnet/Switch Rail
    Actuator Cable Type/Length:
    Robotic Cable 3 m
    Communication Protocol:
    IO-Link
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    Screw Mounting
    Communication Plug Connector I/O Cable:
    Without Controller/ Without Plug Connector
