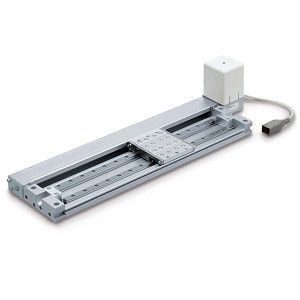

SMC LEMC25T-1000-S3C918 electric actuator cam follower guide slider

SMC LEMC25T-1000-S3C918 LEMC Series Electric Actuator/Low Profile Slider Type Cam Follower Guide Type Step Motor (Servo/24 VDC) Applicable To The JXC Series

SMC
SKU:
LEMC25T-1000-S3C918
$1,965.00
Condition:
New
Current Stock:
Description

LEMC Series Electric Actuator/Low Profile Slider Type Cam Follower Guide Type Step Motor (Servo/24 VDC) Applicable To The JXC Series

  • Low profile, low center of gravity; Table height: 28 mm (in the case of LEMC/H/HT size 25);
  • Can be combined with various guides;
  • High maintainability;
  • Motor mounting position: Above or below, right or left selectable;
  • Solid state auto switch can be mounted for limit confirmation and intermediate signal confirmation;
  • Selectable controllability (Controller); Complete control like an air cylinder (allows for 12 point intermediate stop); Easy position setting by value input;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECP2
    • Additional Information
    Size:
    25
    Motor Mounting Position:
    Top Mounting
    Equivalent Lead:
    48 mm
    Stroke:
    Stroke 1000 mm
    Motor Option:
    Without Lock
    Actuator Cable Type/Length:
    Standard Cable 3 m
    Communication Protocol:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Without Controller/ Without Plug Connector
