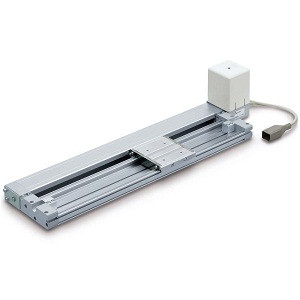

SMC LEMC32UT-1000-S5 LEMC Series Electric Actuator/Low Profile Slider Type Cam Follower Guide Type Step Motor (Servo 24 VDC)
SMC
$1,560.00
The SMC LEMC32UT-1000-S5 is a versatile electric actuator from the LEMC Series, designed with a low profile and low center of gravity, featuring a table height of just 28 mm for the LEMC/H/HT size 25. This actuator is equipped with a cam follower guide type step motor, operating on a 24 VDC servo. It offers high maintainability and flexibility with its motor mounting position options, allowing for above or below, right or left configurations. The actuator can be paired with various guides and is compatible with solid state auto switches for limit and intermediate signal confirmation. Its controllability is selectable, providing complete control similar to an air cylinder with up to 12 point intermediate stops, and easy position setting through value input. Compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECP2, this actuator is ideal for applications requiring precision and adaptability.
- Size:
- 32
- Motor Mounting Position:
- Bottom Mounting
- Lead:
- 48 mm
- Stroke:
- Stroke 1000 mm
- Motor Option:
- Without Lock
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 5 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
