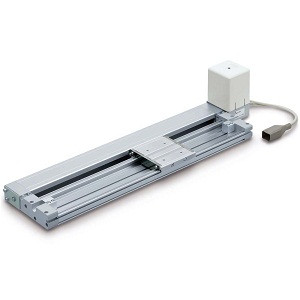

SMC LEMC32UT-250-S5 LEMC Series Electric Actuator/Low Profile Slider Type Cam Follower Guide Type Step Motor (Servo 24 VDC)
SMC
$1,210.00
The SMC LEMC32UT-250-S5 is a versatile electric actuator from the LEMC Series, designed with a low profile slider type cam follower guide and powered by a step motor (Servo 24 VDC). This actuator boasts a low profile and low center of gravity, with a table height of just 28 mm, making it ideal for applications where space is at a premium. It offers high maintainability and can be combined with various guides to suit different needs. The motor mounting position is flexible, allowing for above or below, right or left configurations. For added functionality, a solid state auto switch can be mounted for limit and intermediate signal confirmation. The actuator provides selectable controllability, offering complete control similar to an air cylinder with up to 12 point intermediate stops, and easy position setting through value input. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECP2, ensuring seamless integration into your system.
- Size:
- 32
- Motor Mounting Position:
- Bottom Mounting
- Lead:
- 48 mm
- Stroke:
- Stroke 250 mm
- Motor Option:
- Without Lock
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 5 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
