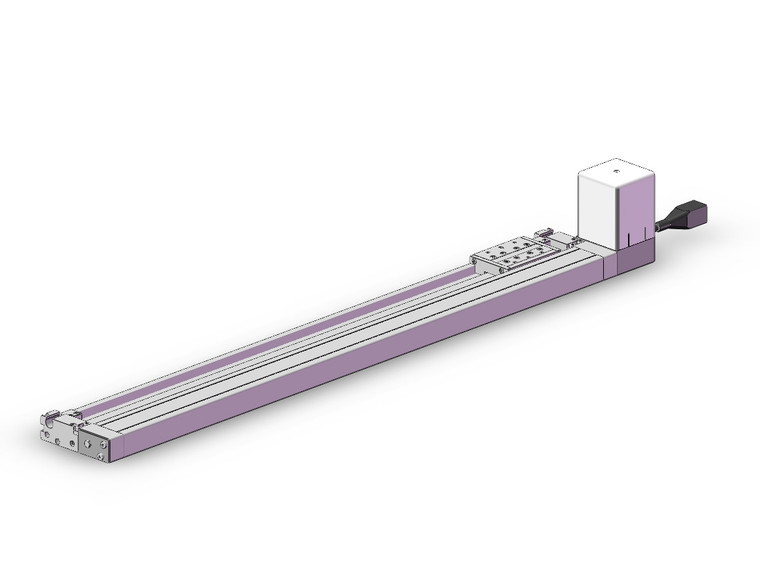

SMC LEMH25LT-600 LEMH/HT Series Electric Actuator/Low Profile Slider Type Linear Guide Single Axis Type/Double Axis Type Step Motor (Servo 24 VDC)
SMC
$1,575.00
SMC LEMH25LT-600 - LEMH Electric Actuator, 25mm, 600mm Stroke, Low-Profile
The SMC LEMH25LT-600 is an electric actuator, 25mm frame, 600mm stroke. Programmable positioning with step or servo motor drive.
Key Features & Specifications
- Electric actuation - programmable position, speed, acceleration, and force
- 24VDC step/servo motor - energy-efficient with precise positioning
- Compact design - minimized height for space-constrained layouts
- Ball screw or belt drive - matched to application requirements
- Controller compatible - works with SMC LECP/JXC controllers
- Clean series compatible
- Size: 25mm | Stroke: 600mm | Electric
Typical Applications
Automated assembly, dispensing, and compact positioning systems.
Manufactured by SMC Corporation.
- Guide:
- 1 Axis
- Size:
- 25
- Motor Mounting Position:
- Symmetric, Top Mounting
- Lead:
- 48 mm
- Stroke:
- Stroke 600 mm
- Motor Option:
- Without Lock
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
