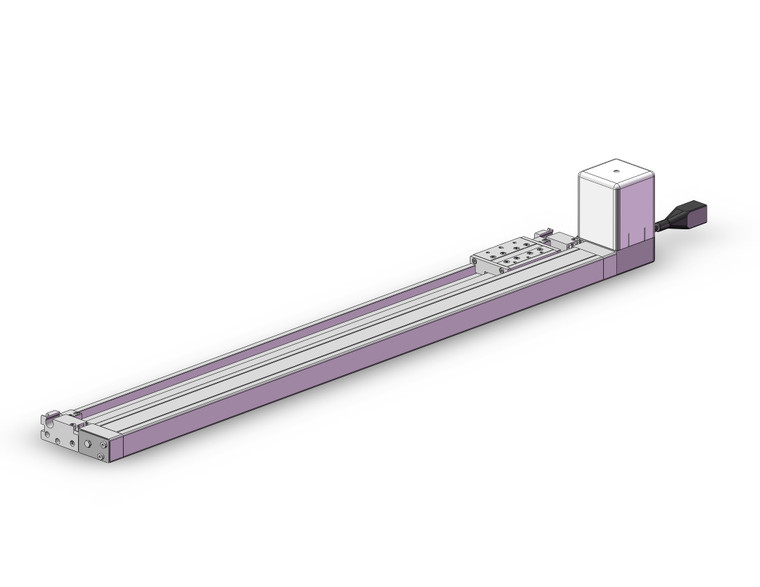

SMC LEMH25LT-600-S52P5D LEMH/HT Series Electric Actuator/Low Profile Slider Type Linear Guide Single Axis Type/Double Axis Type Step Motor (Servo 24 VDC)
SMC
$1,920.00
The SMC LEMH25LT-600-S52P5D is a versatile electric actuator from the LEMH/HT Series, designed for precision and efficiency. This low-profile slider type linear guide is available in both single and double axis configurations, powered by a 24 VDC step motor. With a table height of just 28 mm, it offers a low center of gravity, making it ideal for applications requiring stability and compactness. The actuator can be paired with various guides, enhancing its adaptability to different setups. It boasts high maintainability, with the motor mounting position being flexiblechoose from above or below, right or left. For added functionality, a solid-state auto switch can be installed for limit and intermediate signal confirmation. The actuator supports selectable controllability, allowing for complete control akin to an air cylinder, with the capability of 12-point intermediate stops. Position setting is simplified through value input, and it is compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECP2.
- Guide:
- 1 Axis
- Size:
- 25
- Motor Mounting Position:
- Symmetric, Top Mounting
- Lead:
- 48 mm
- Stroke:
- Stroke 600 mm
- Motor Option:
- Without Lock
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 5 m
- Controller Type:
- LECP2 Program Less Type (With Stroke Study) PNP
- I/O Cable Length, Communication Plug:
- 5 m
- Controller Mounting:
- DIN Rail Mounting
