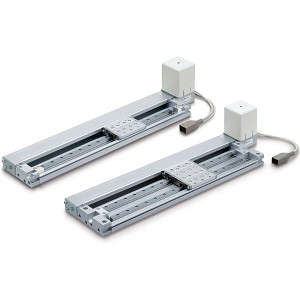

SMC LEMH32T-1200 LEMH/HT Series Electric Actuator/Low Profile Slider Type Linear Guide Single Axis Type/Double Axis Type Step Motor (Servo 24 VDC)
SMC
$2,800.00
The SMC LEMH32T-1200 LEMH/HT Series Electric Actuator is designed for precision and versatility, featuring a low profile slider type linear guide that is available in both single and double axis configurations. This actuator is equipped with a step motor (Servo 24 VDC) and offers a low center of gravity with a table height of just 28 mm, making it ideal for applications where space is limited. It can be combined with various guides to suit different needs and boasts high maintainability for long-term use. The motor mounting position is flexible, allowing for above or below, right or left configurations. For added functionality, a solid state auto switch can be mounted for limit and intermediate signal confirmation. The actuator offers selectable controllability, providing complete control similar to an air cylinder with the capability for 12 point intermediate stops. Position setting is made easy through value input. It is compatible with a range of controllers including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, and LECP2, ensuring seamless integration into your system.
- Guide:
- 1 Axis
- Size:
- 32
- Motor Mounting Position:
- Top Mounting
- Lead:
- 48 mm
- Stroke:
- Stroke 1200 mm
- Motor Option:
- Without Lock
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
